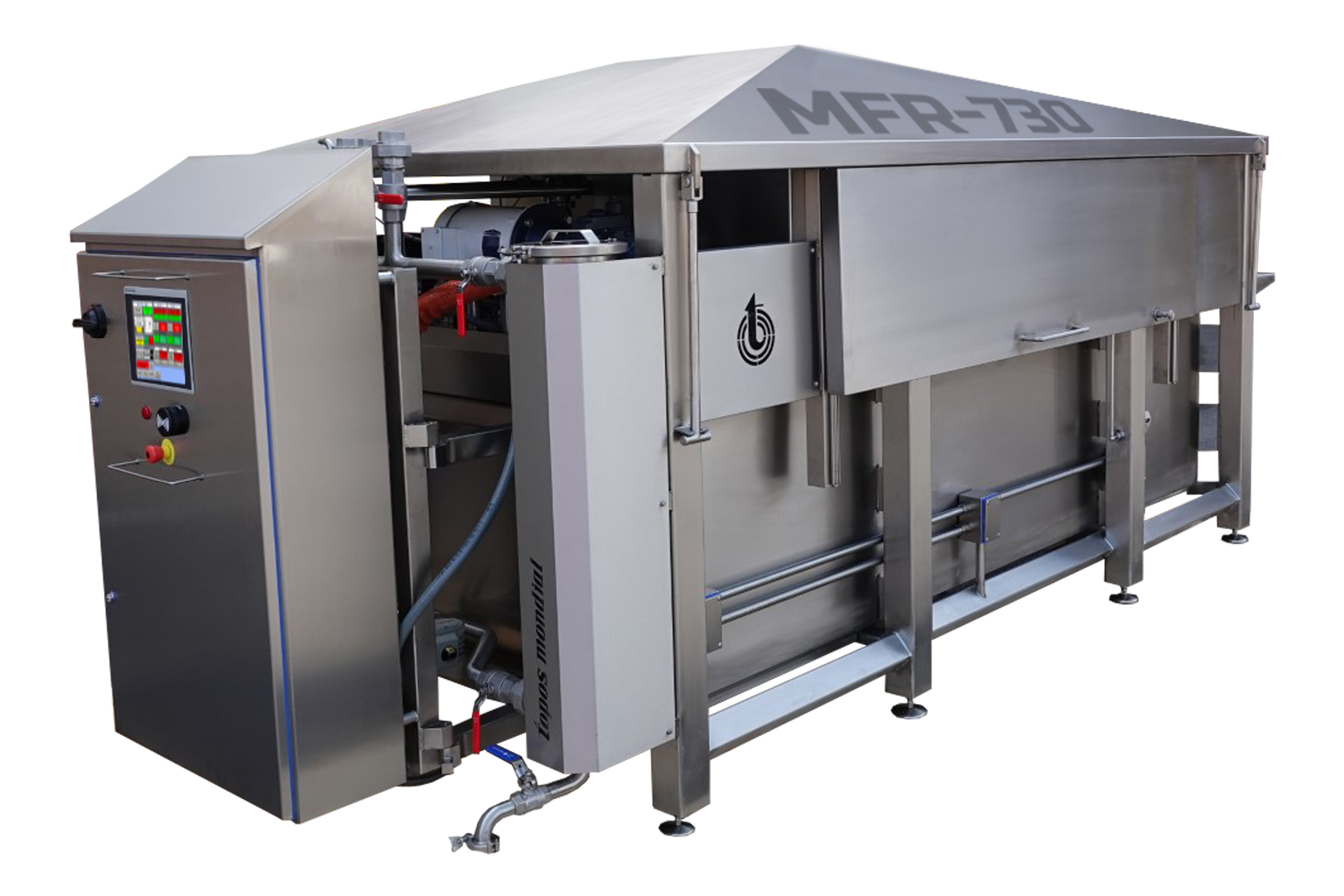

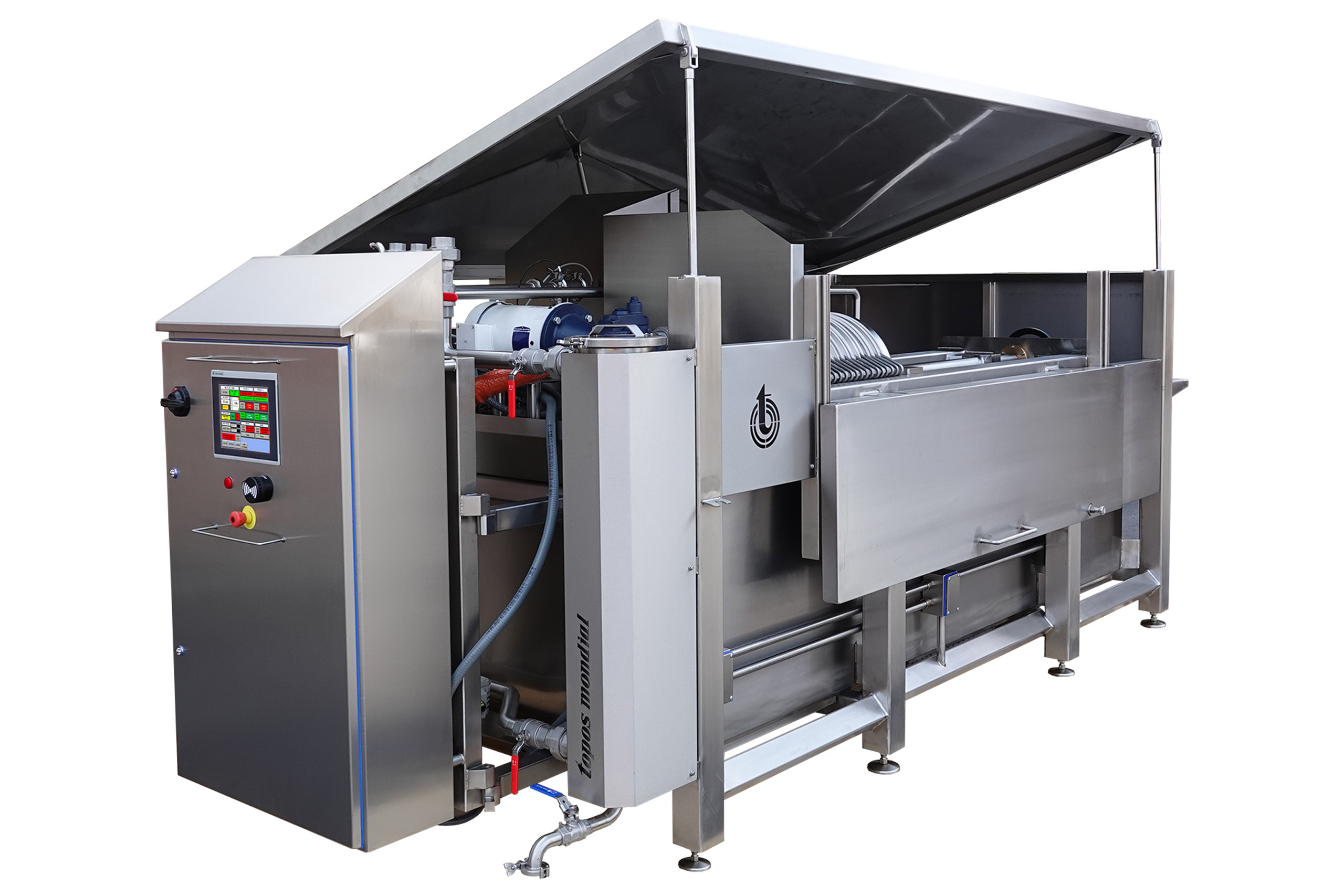

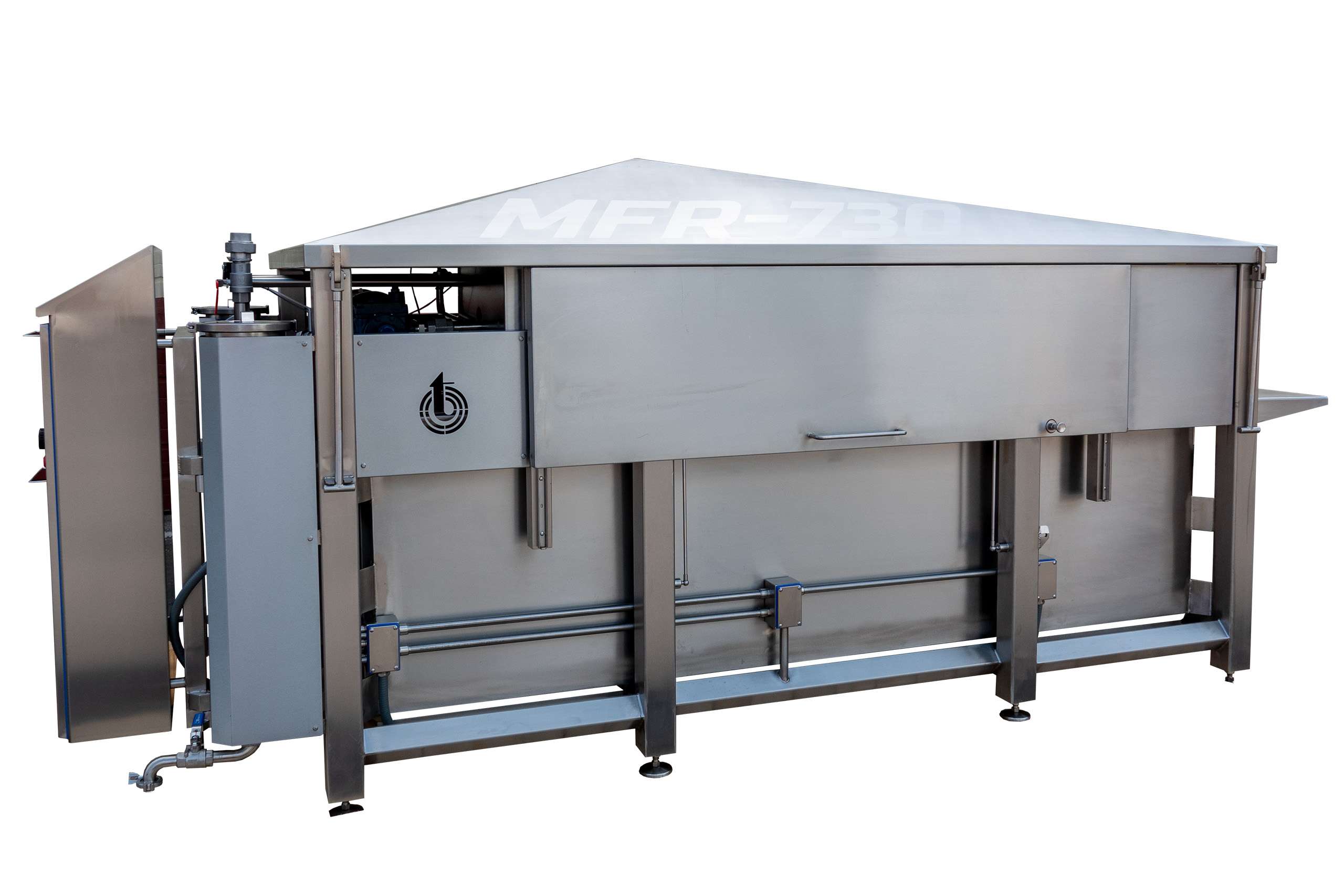

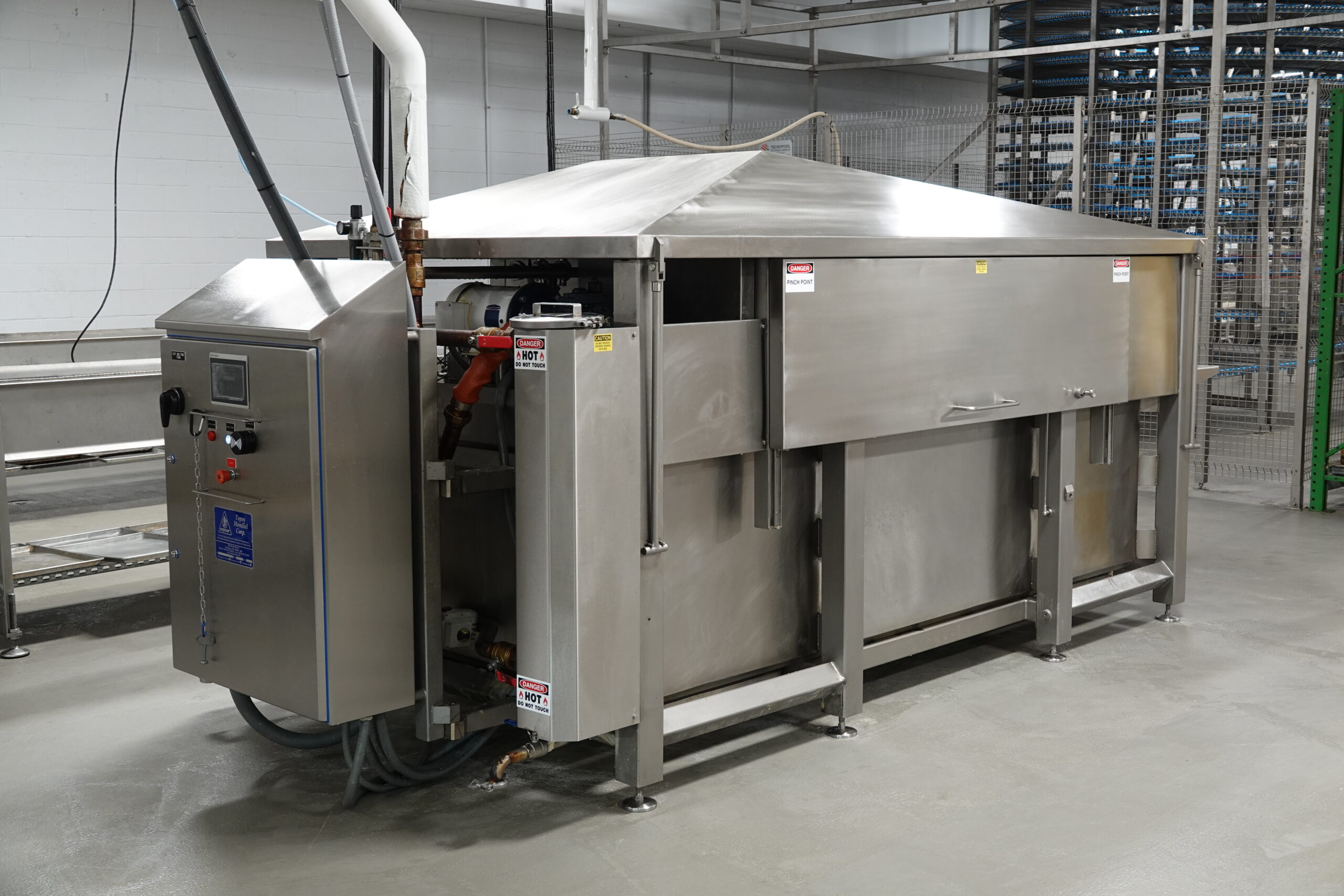

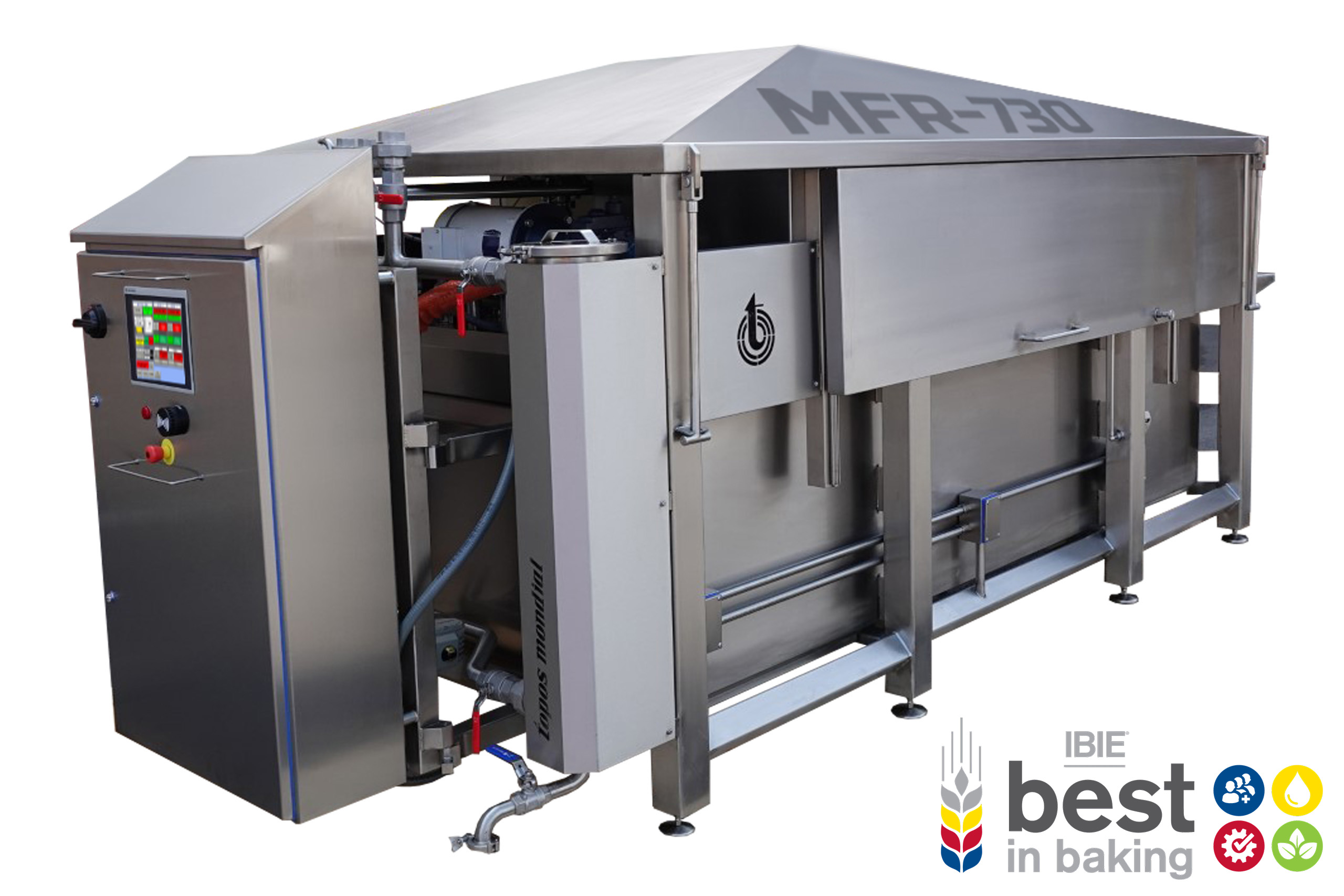

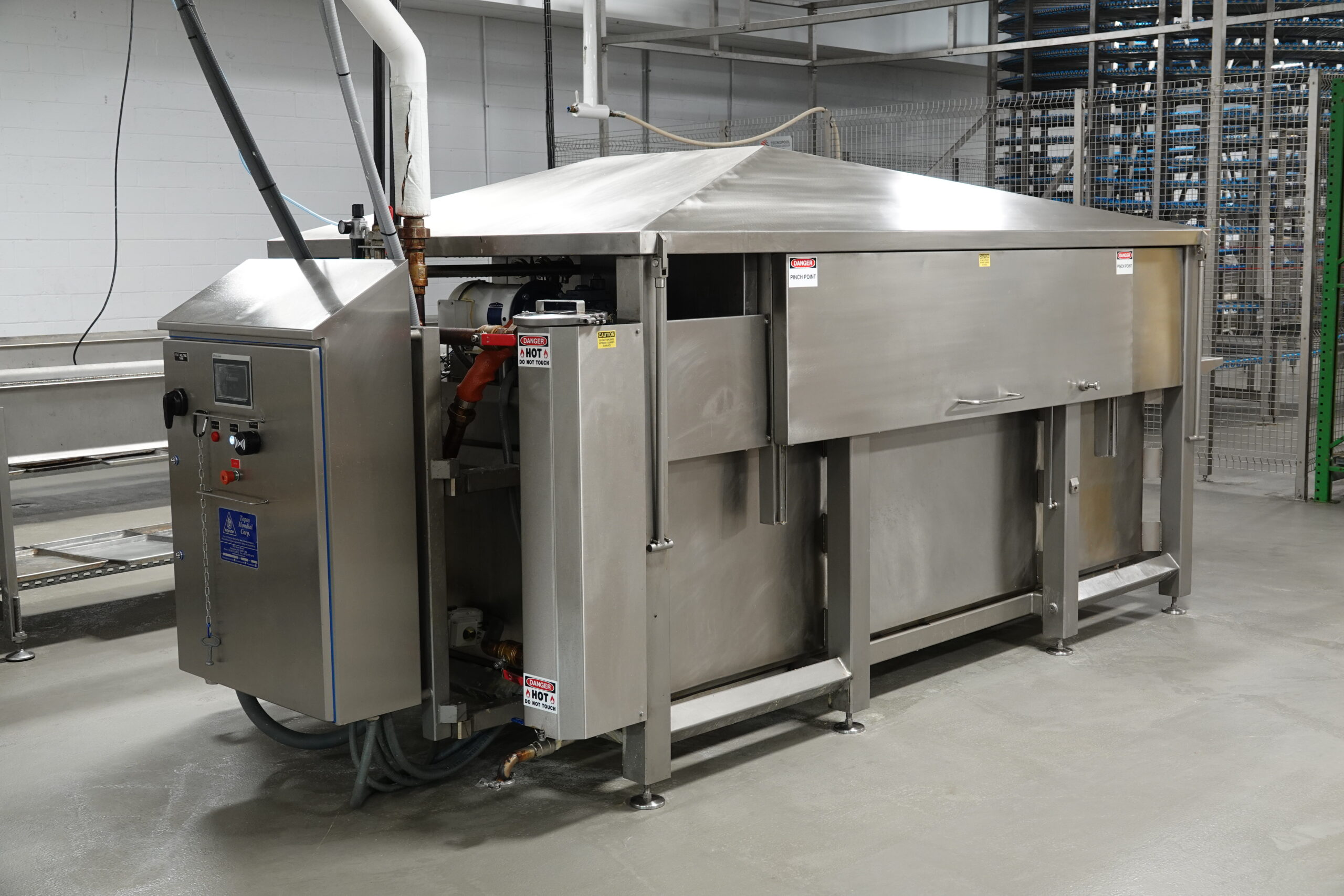

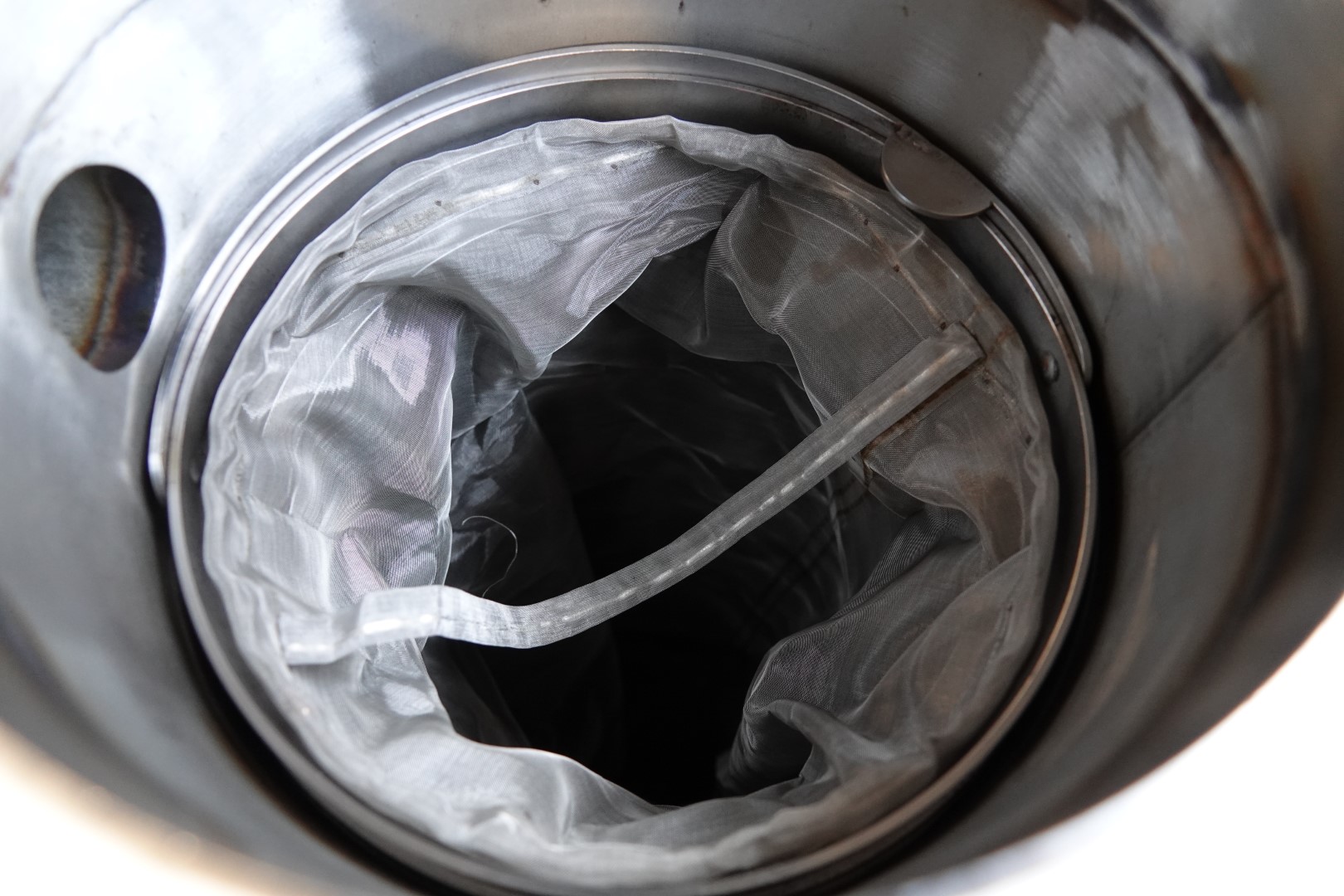

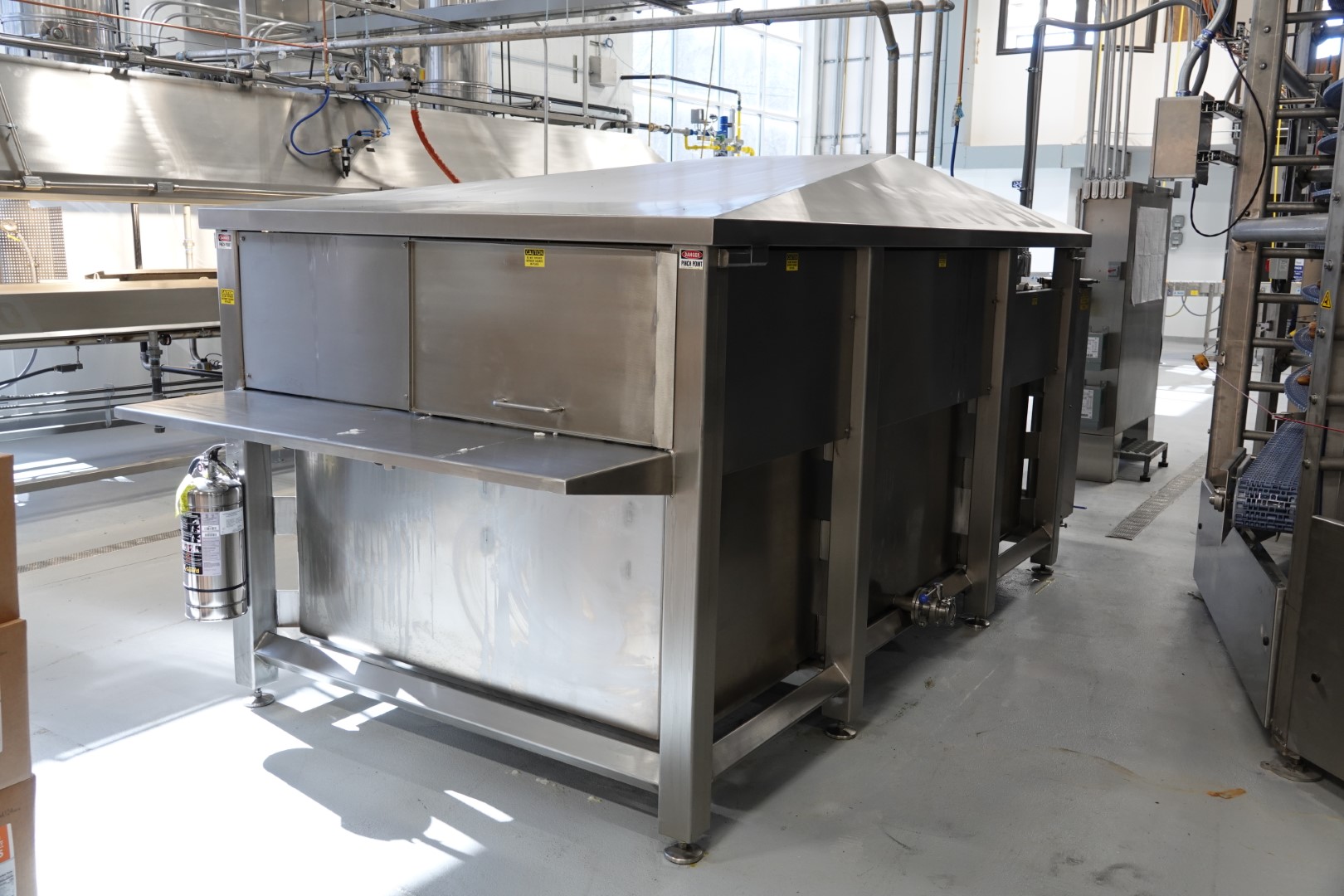

Topos Mondial can now offer an all-in-one hot oil melting tank. The MFR-730 is a melting, filtering, reservoir that can hold up to 730 U.S liquid gallons.
It contains a set of 10 kW ceramic resistive heating elements capable of efficiently maintaining the optimal oil-storage temperature – 150 degrees Fahrenheit. Resistive heating elements are externally surface-mounted underneath the tank. This indirect, surface contact heating via the bottom wall minimizes temperature-related degradation of the frying oil. This degradation normally comes from direct contact immersion heater elements, and the associated fouling of such components. Additionally, mounting the resistive heaters on the external surface eliminates the need for penetrations through the wall of the tank. This eliminates any potential for leaks associated with such penetrations.

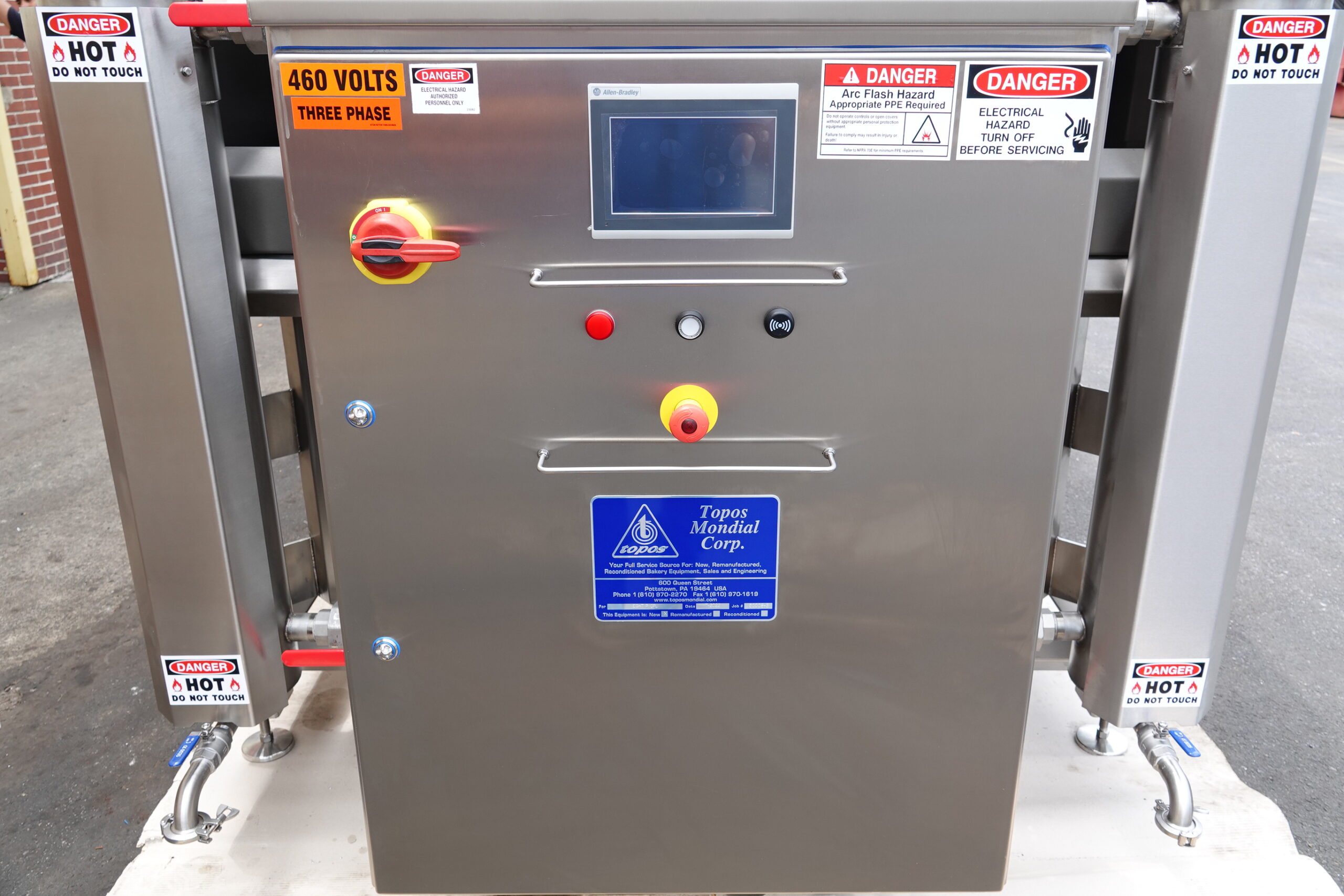

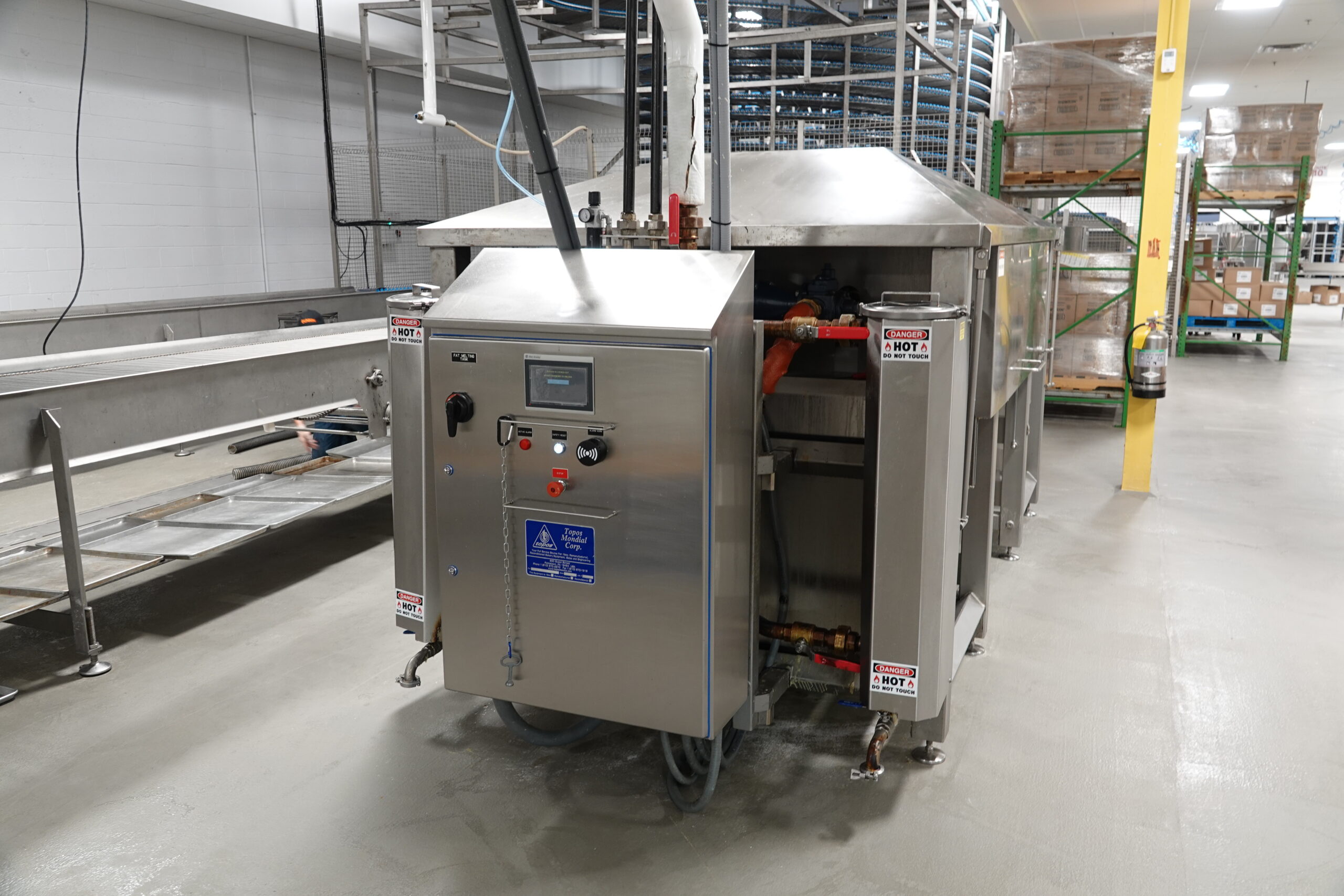

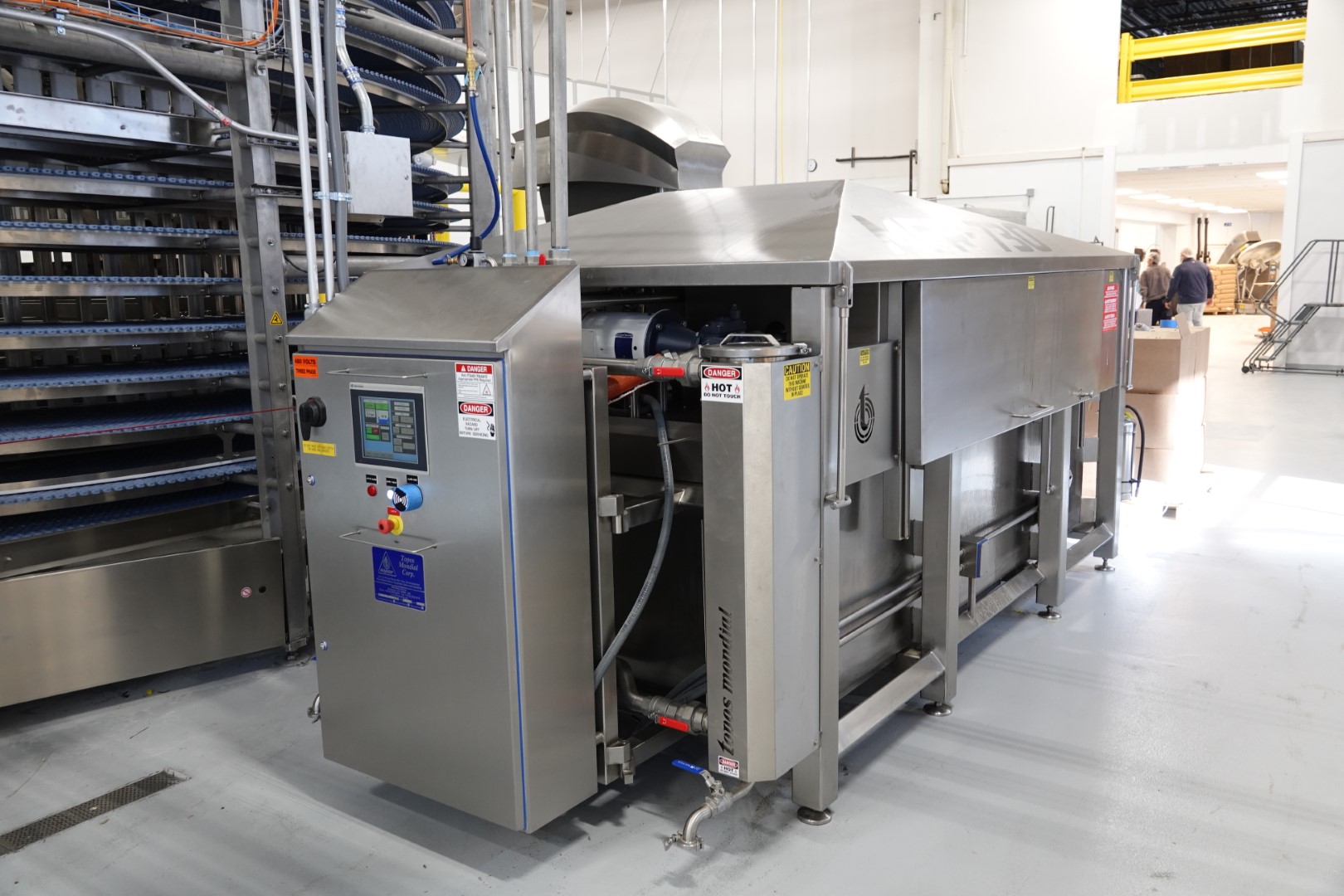

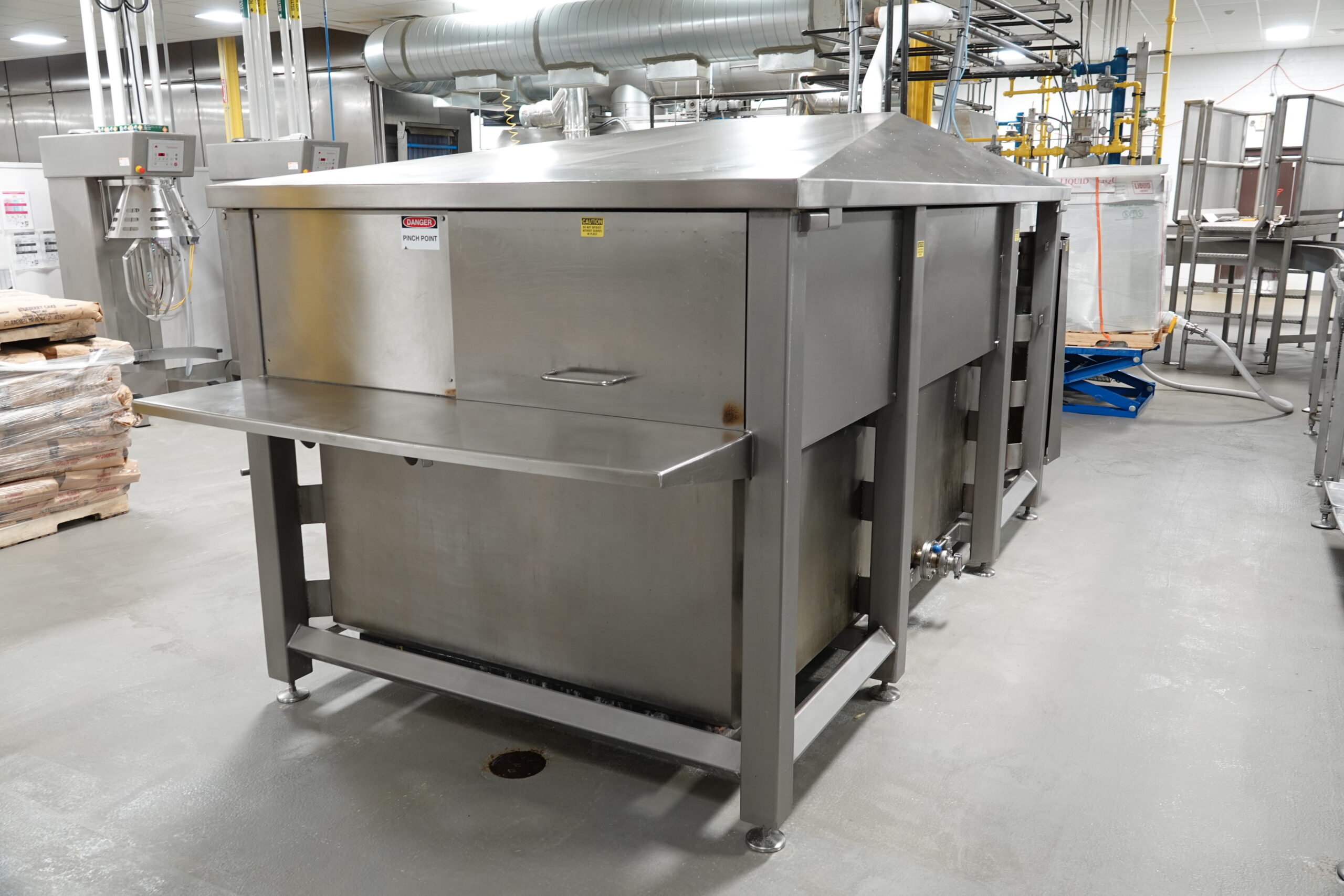

The control panel features Allen-Bradley PanelView touch screen user interface. This interface displays pertinent data values and warnings for the operator. These warnings can be oil temperature, system activity callouts, pressure readings, live oil level measurements, and more. The slide-gate opening allows for simple and easy fat-adding.
Made by: Topos Mondial Corp
Quantity Available: Made to order
