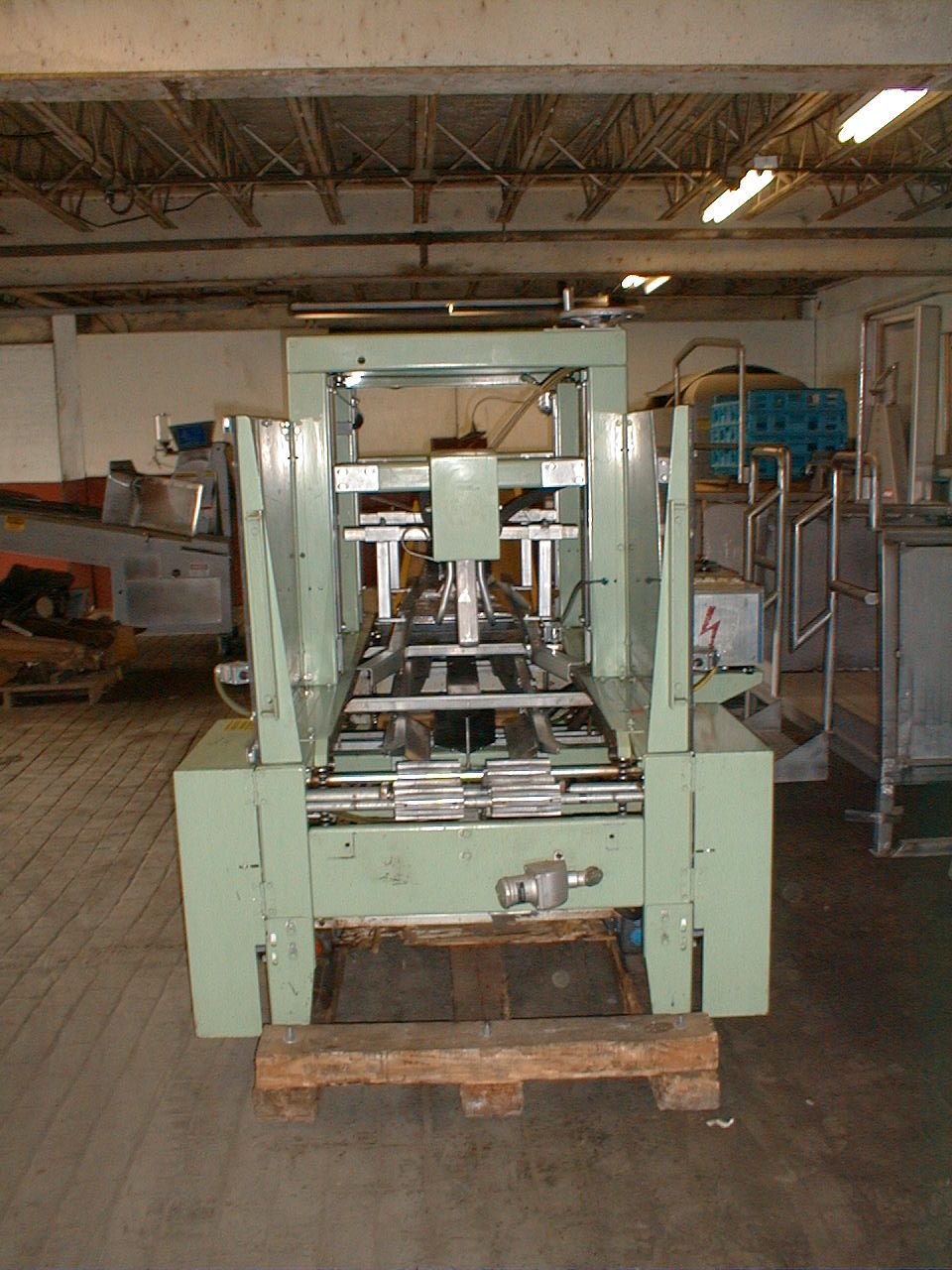

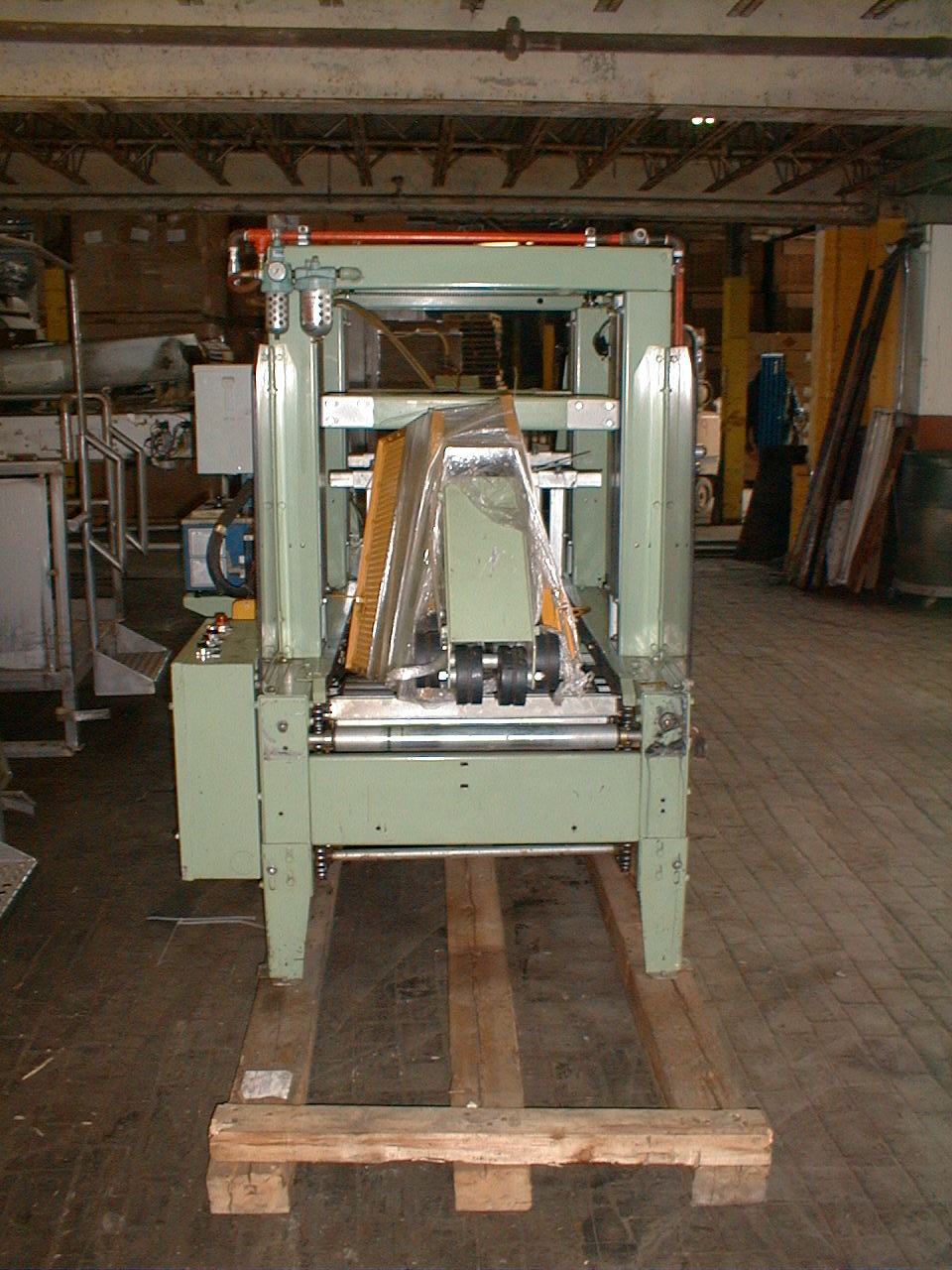

Marq Top and Bottom Fully Automatic Case Sealer

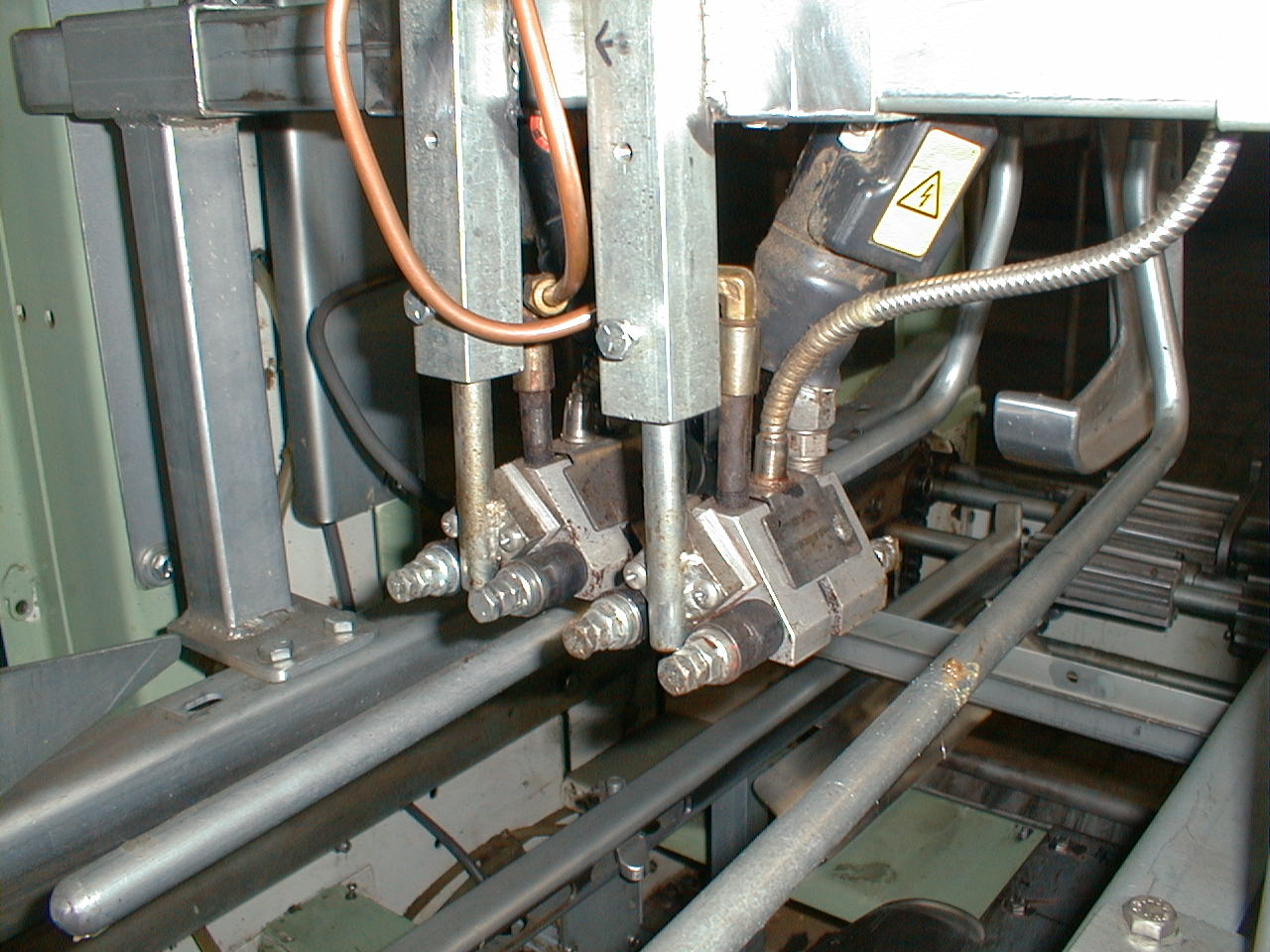

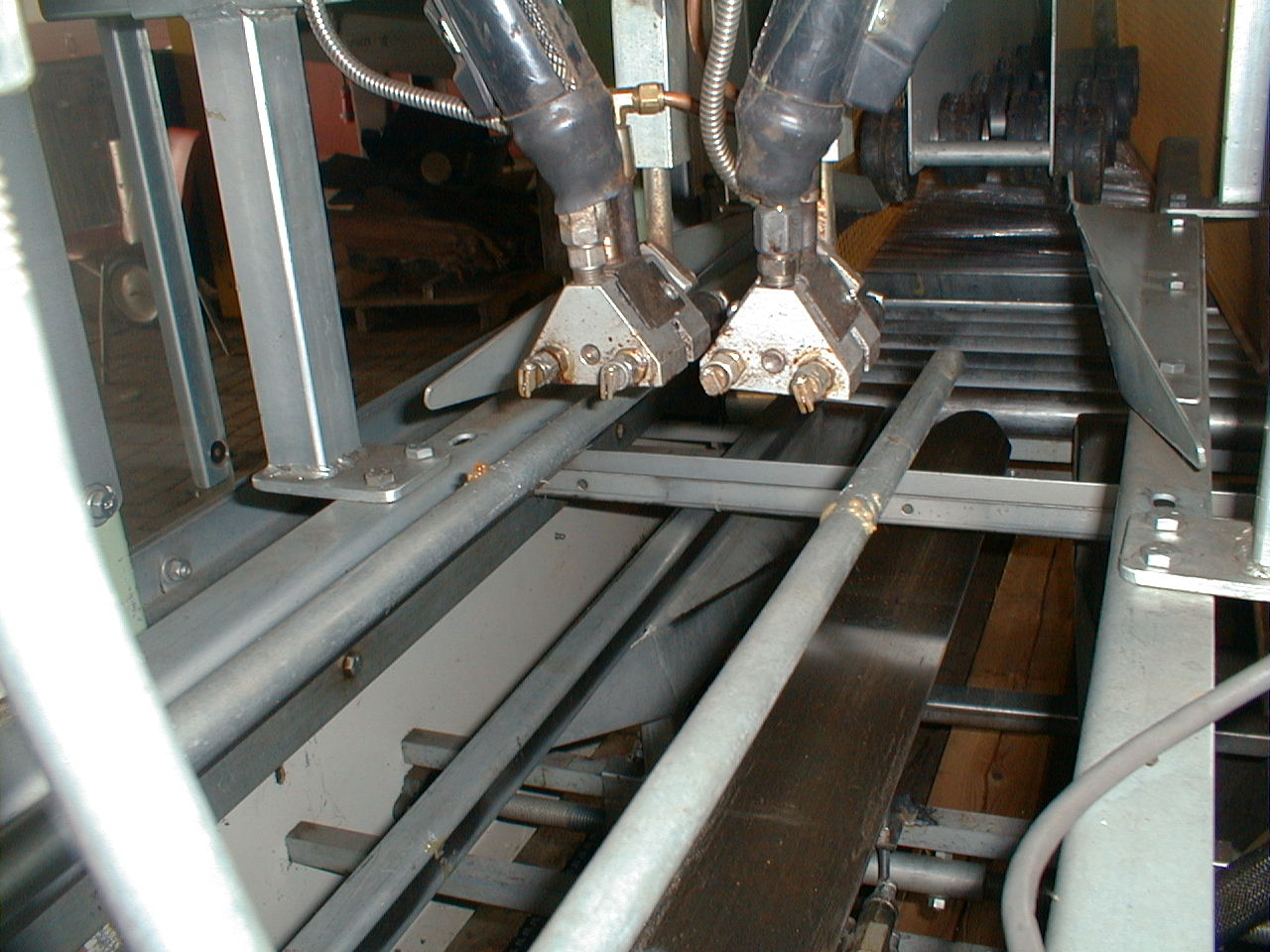

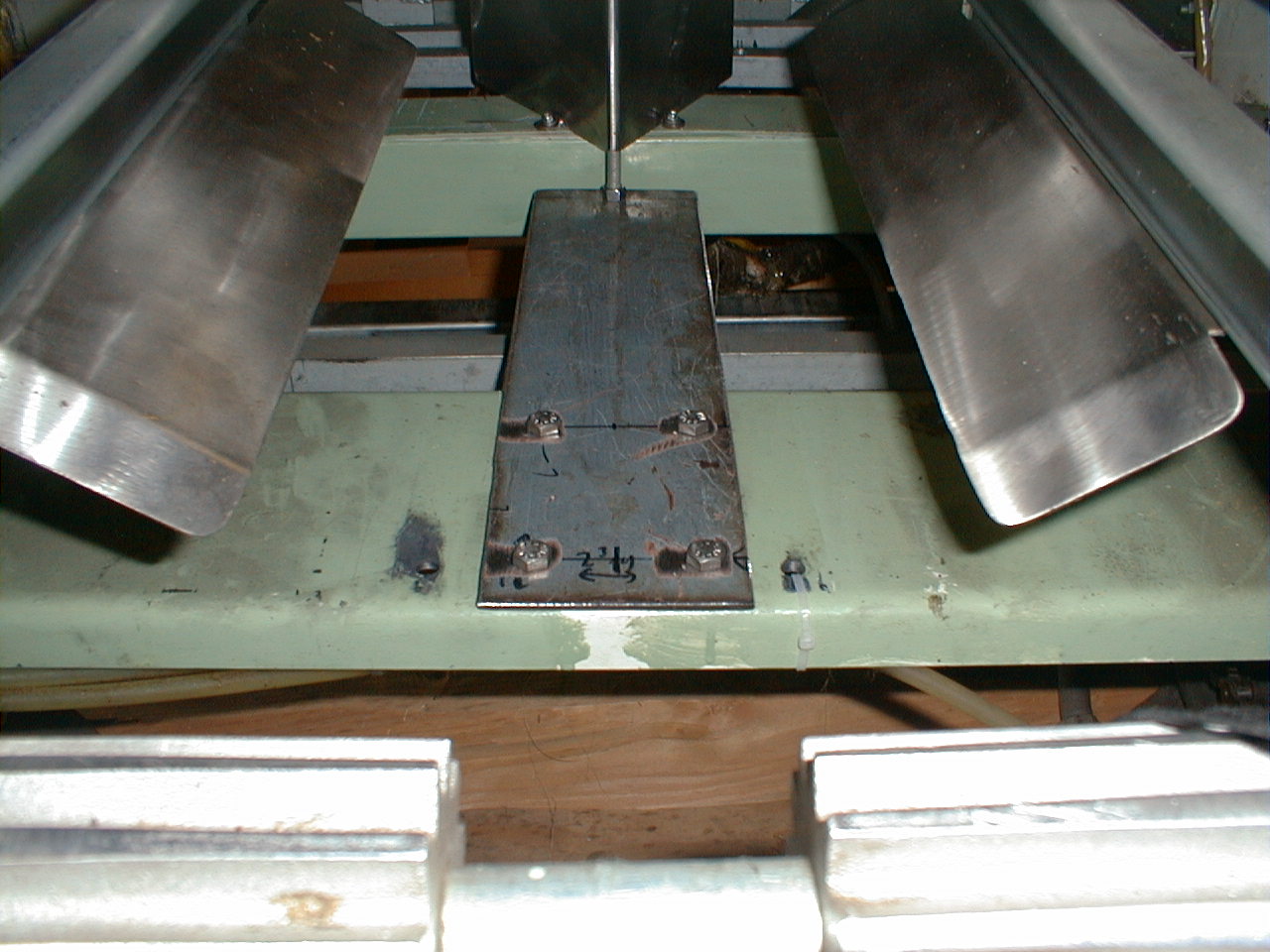

Introducing the Marq top and bottom fully automatic case sealer with a “Norsdon” hot melt glue system, Model HM IV. This case sealer, model number MQ2TB1, serial number 7220, features an extended compression hold-down roller section and operates on 230 volt 3-phase electricals. It includes a top back minor flap tucker and accepts cases in the standard width orientation (long side of the box in line with the flow).

Key features include:

• Automatic indexing gate to handle a steady stream of boxes.
• Glue seals for the top and bottom major flaps (lengthwise).
• Rated for up to 20 cases per minute.
• Case size range: Length (8” to 24”), Width (8” to 22”), Height (5-1/2” to 16”).
• Utilizes 4 SCFM of 80 PSI compressed air at 1200 cases per hour.
• Quick size changeover with adjusting hand wheels.
• Fully OSHA-guarded for safety.

This machine and glue application system will be shop tested, cleaned, and in very good running condition before shipment, ensuring optimal performance for your packaging needs.
