Werner Lehara 1-Meter Wire-cut/Depositor with assorted dies -Biscotti

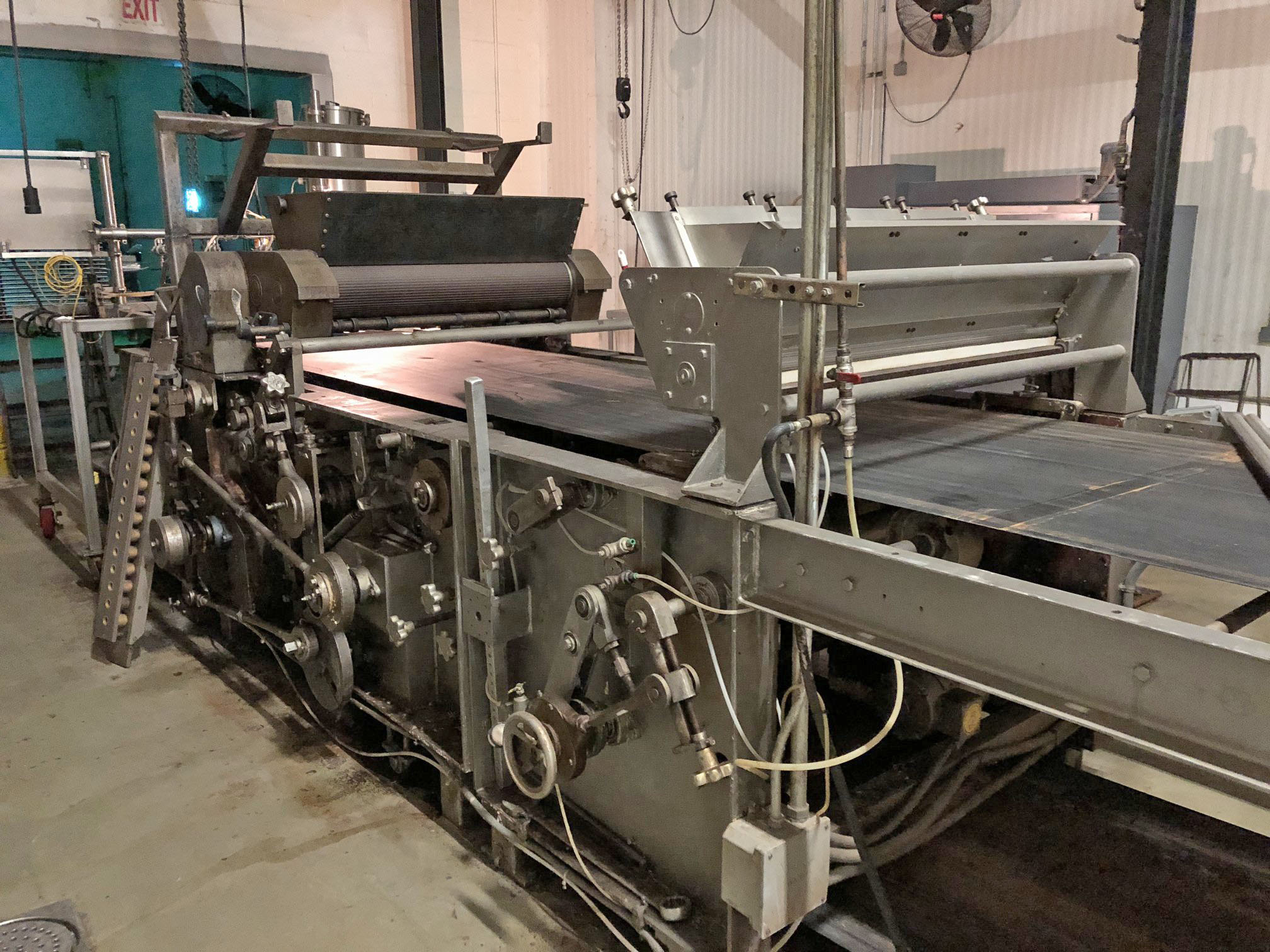

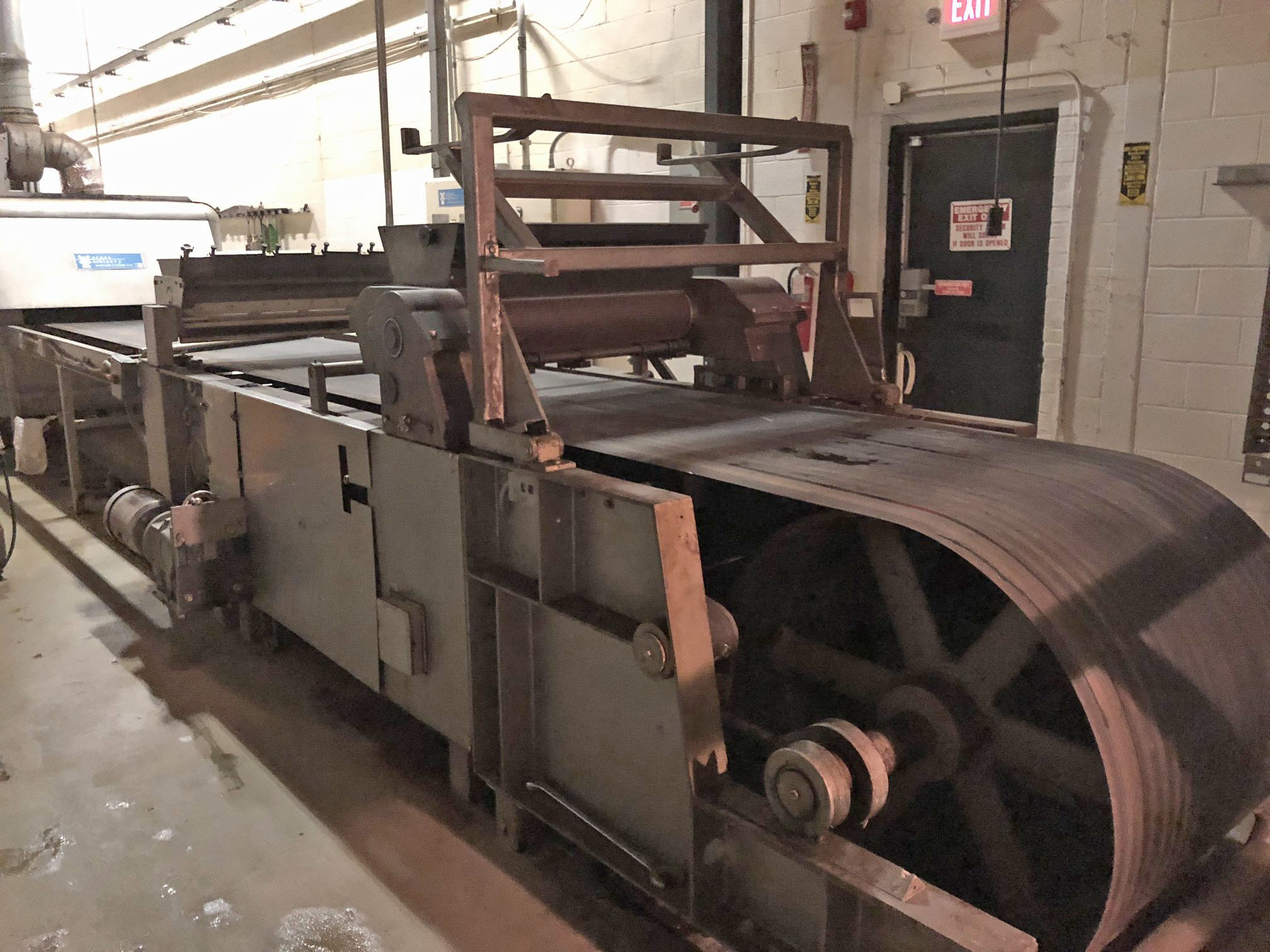

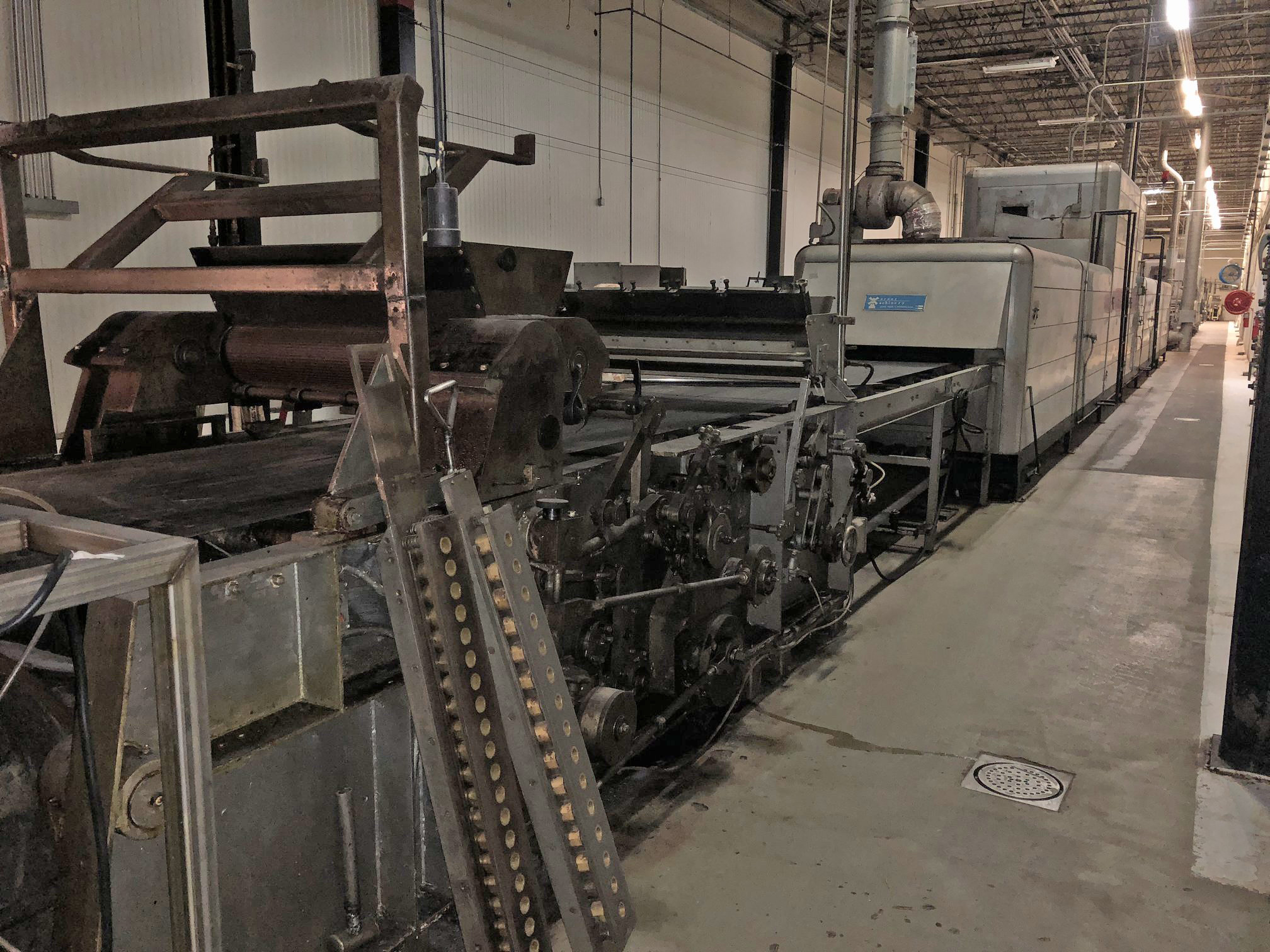

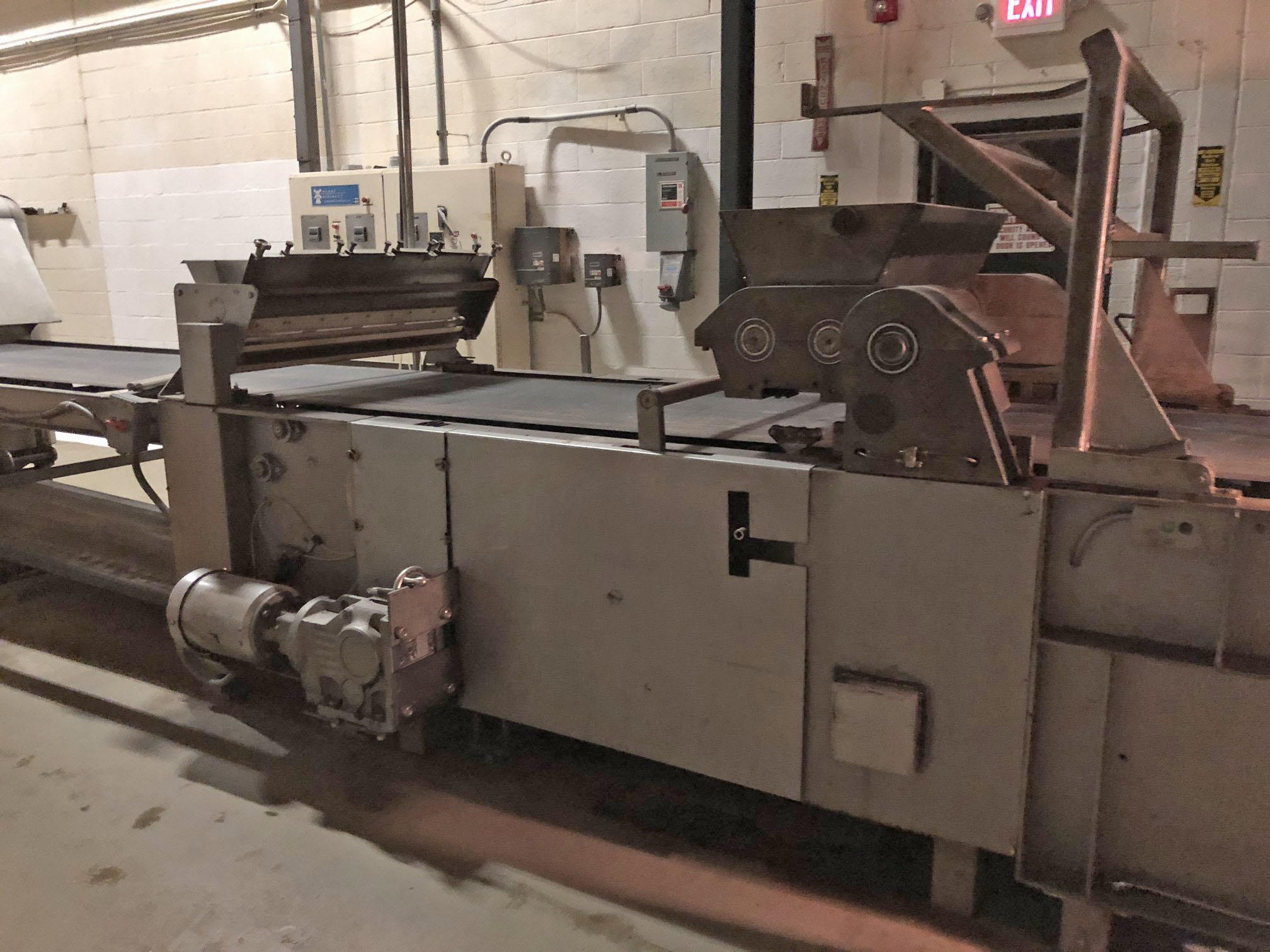

Werner Lehara 1-Meter Wire-cut/Depositor with assorted dies

• This machine can be used to wire-cut, deposit directly on the steel belt as well as create continuous ribbons of product to be cut later by the band saw {Biscotti}.

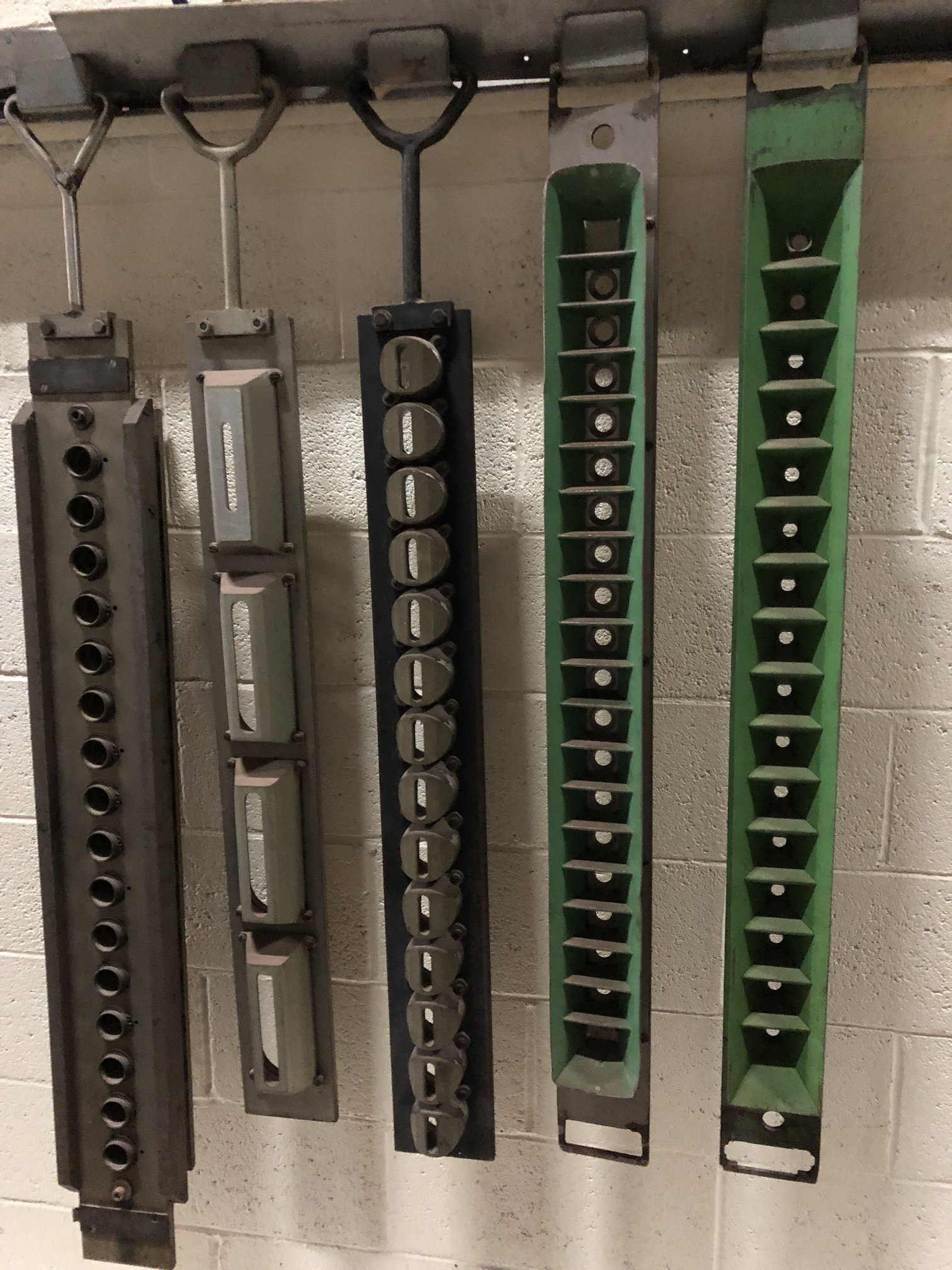

• Includes; [9] dies total: (15) 1″ round, (20) 1″ round, (10) 2″ long x 1/2″ oval, (30) 1/2″ round, (14) 1-7/8″ c 1/2″ oval, (4) 6″ x 3/4″ oval,(16) 7/8″ holes,(18) 3/4″ round, (16) 1/2″ round

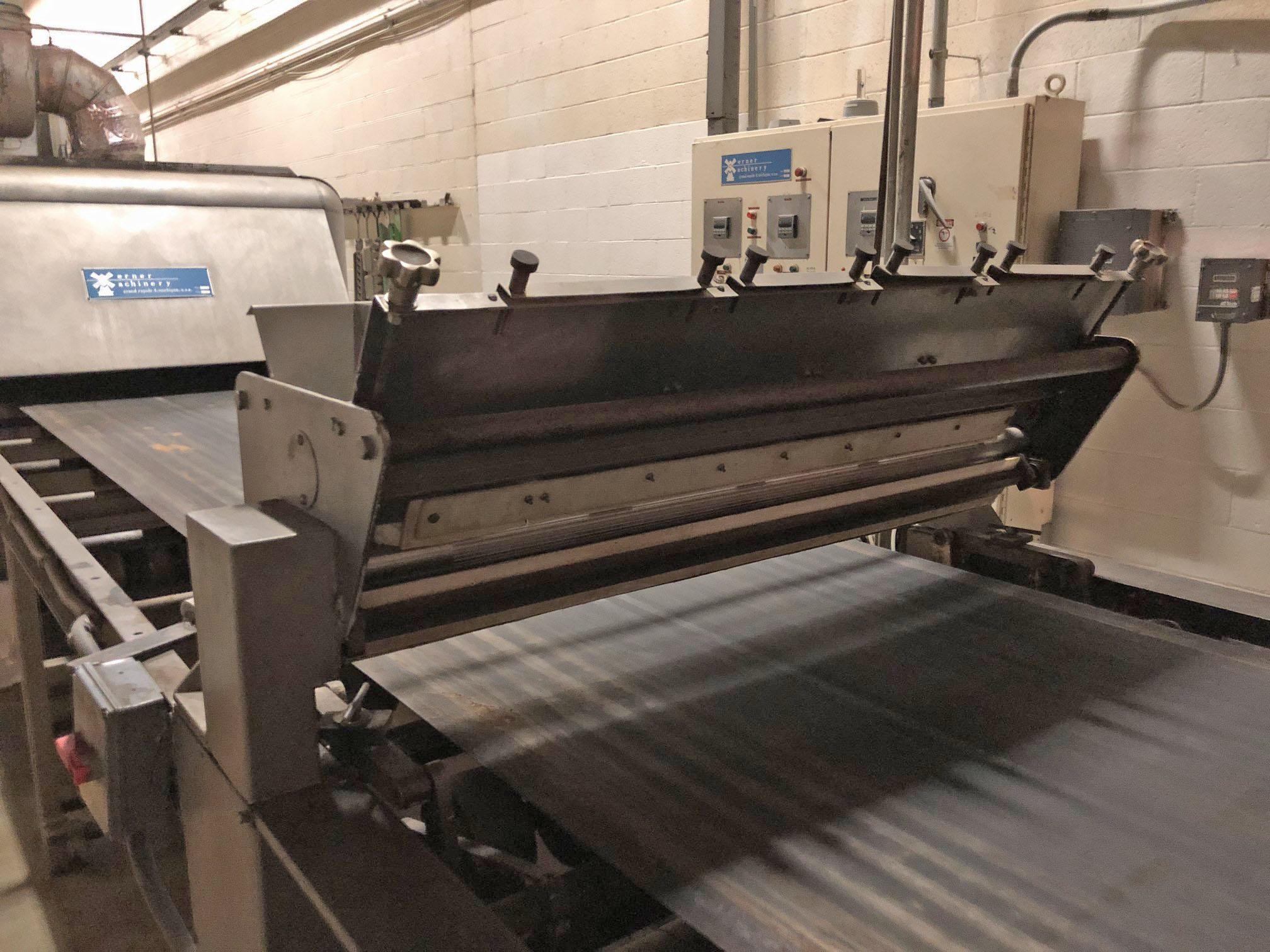

Werner Lehara Sugar topping device

• 1 meter wide, over the band type, compartmentalized

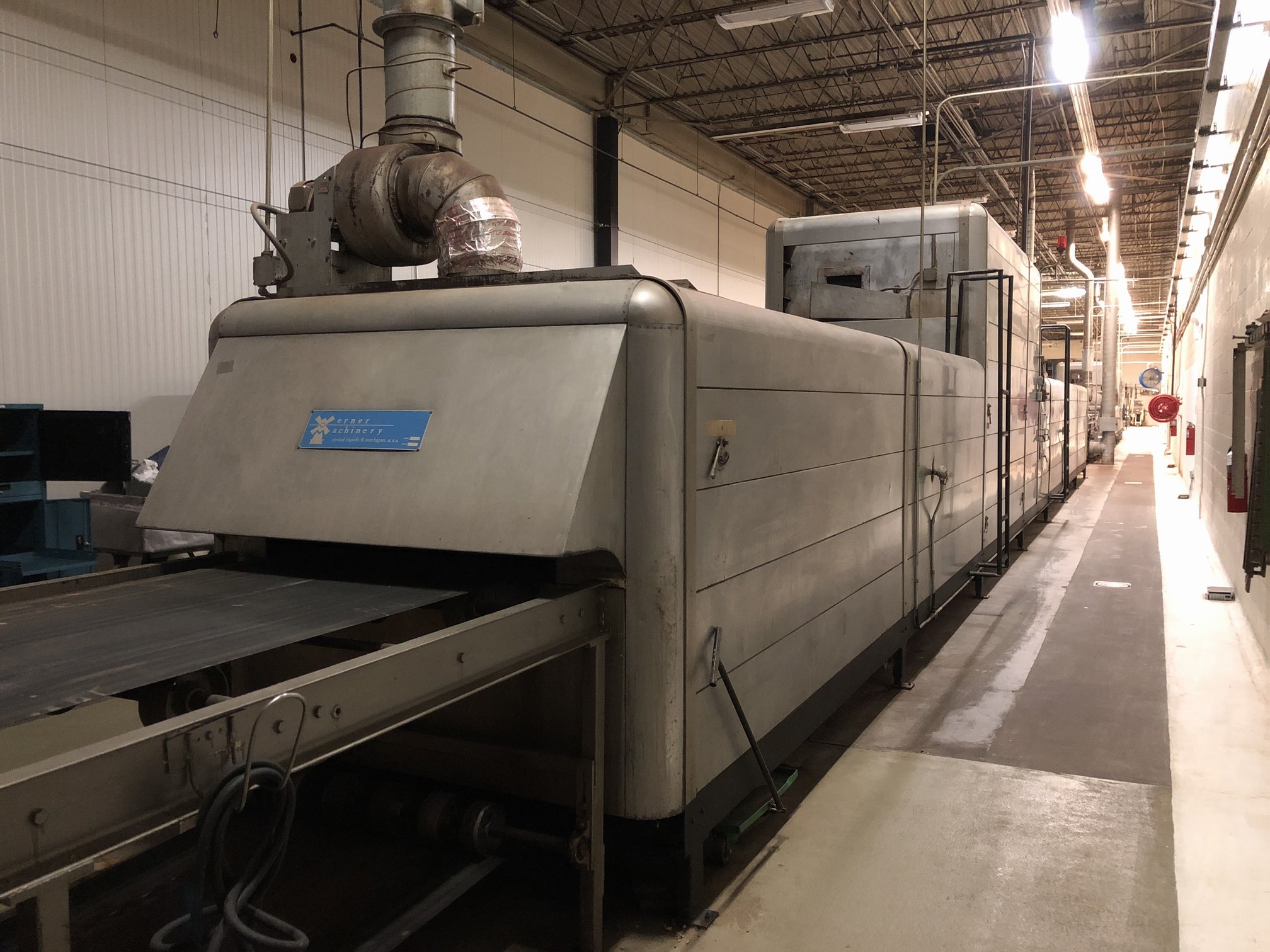

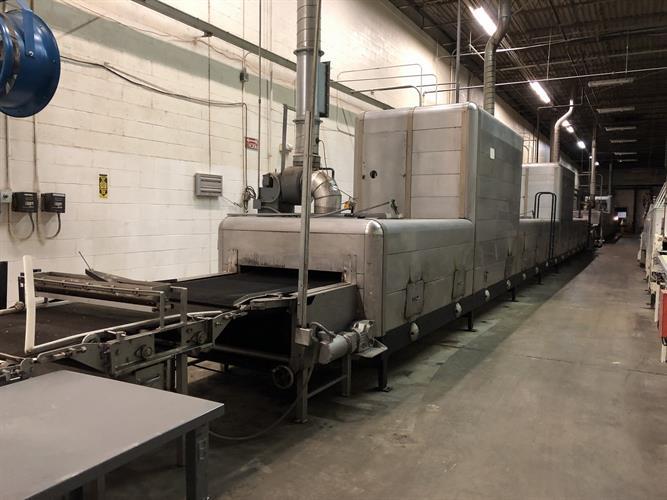

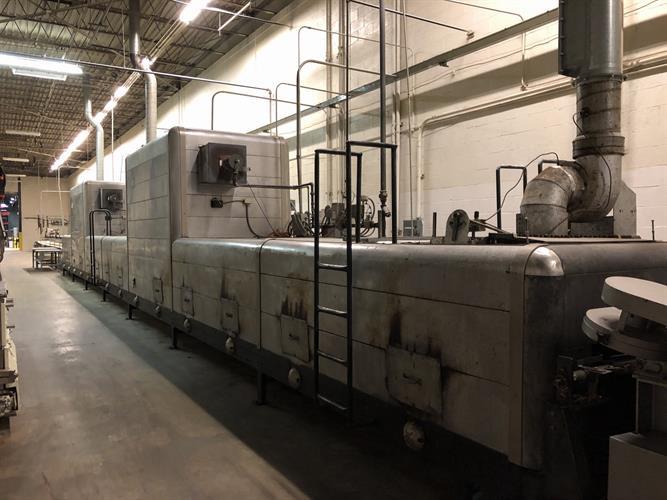

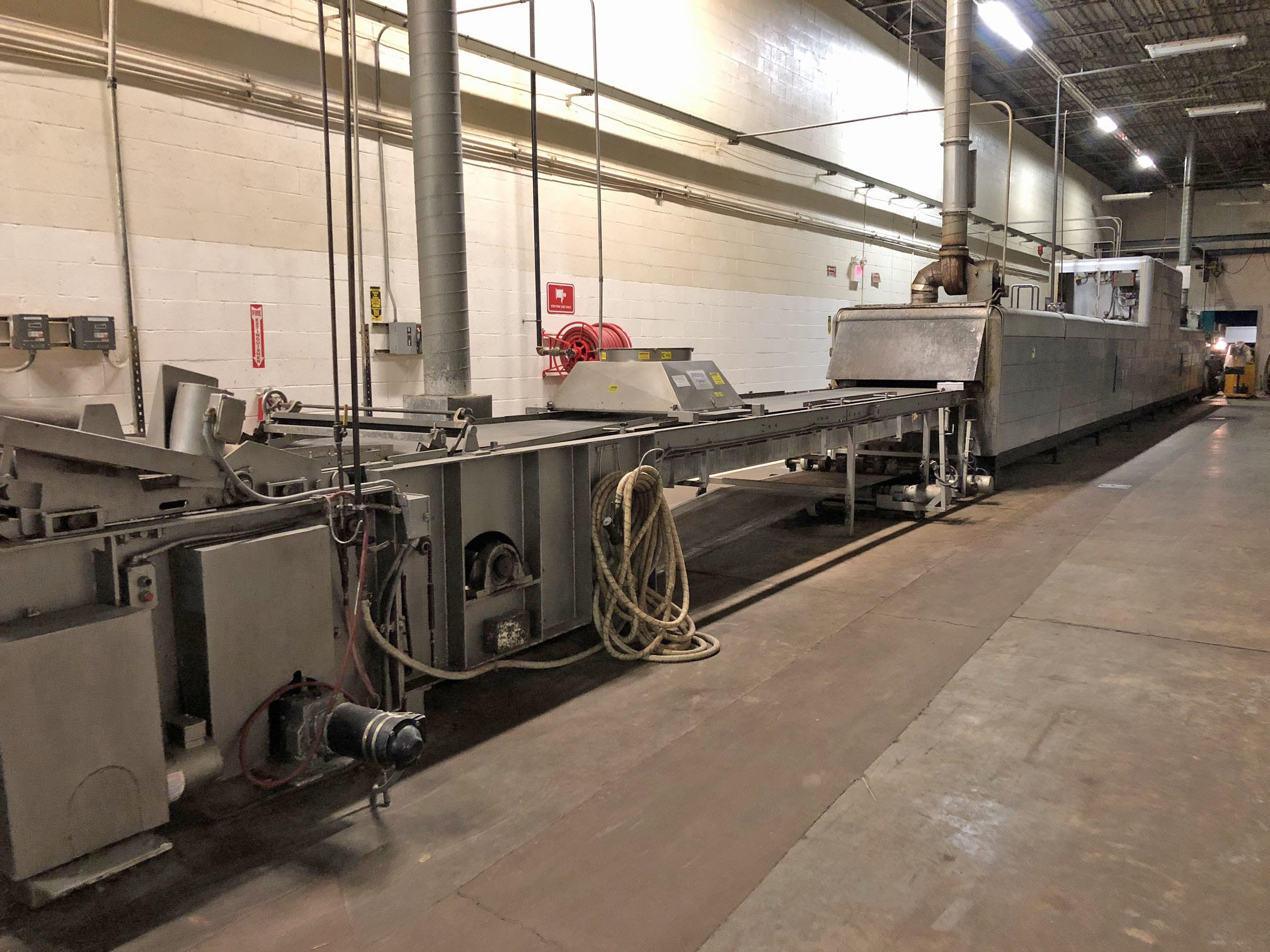

Werner Lehara Indirect Fired 1-Meter wide Oven

• Natural gas fired
• One zone
• Steel Band
• 25-ft long infeed section
• 70-ft long oven baking chamber
• 25-ft long discharge cooling section with fans above and below belt
• Model 1-44569, serial#1159

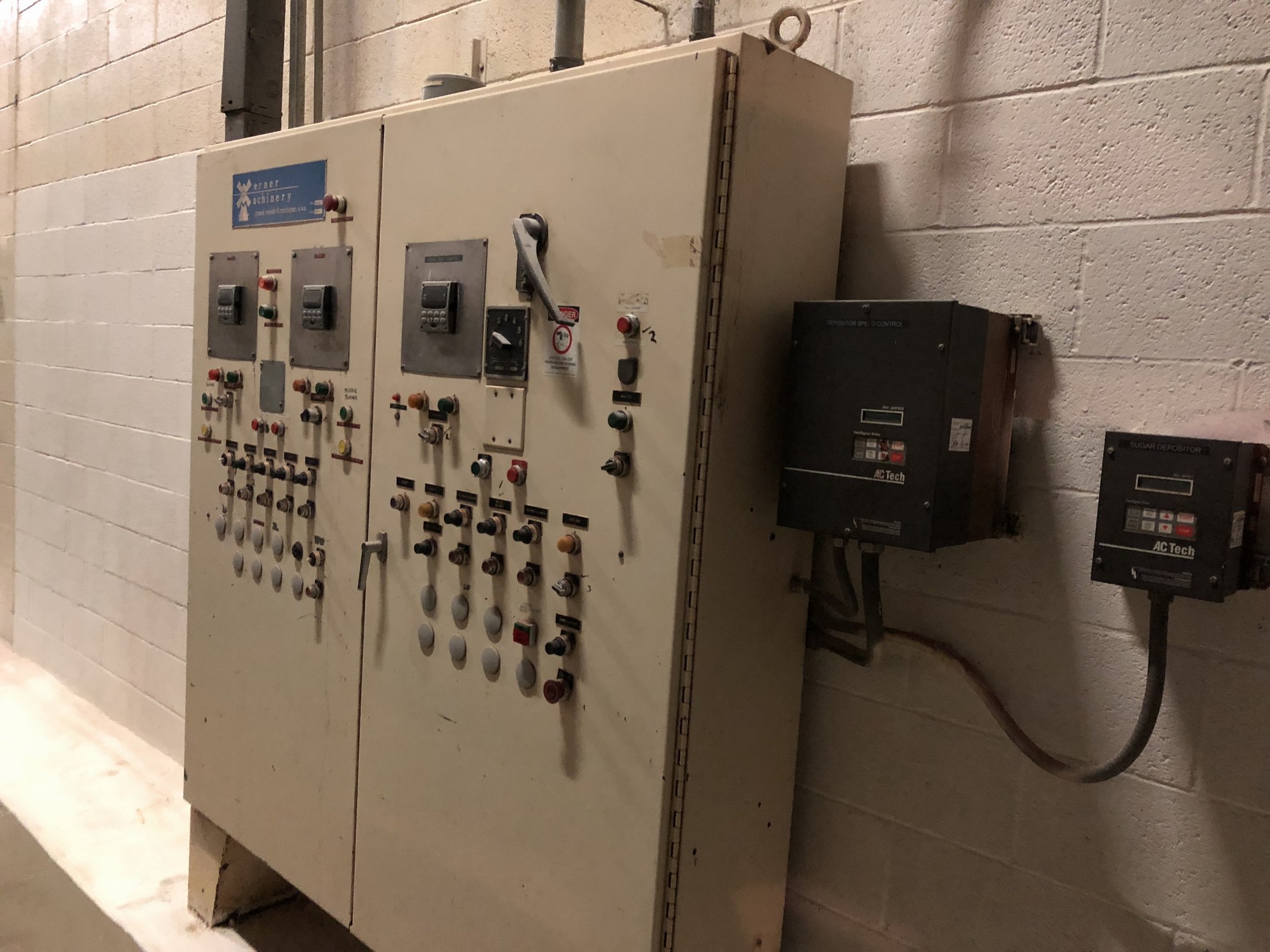

• Master control panel

Custom Werner “up and down” type band saw type cutter

• Cutting the baked products to the desired length
• Mounted on an independent, 6’ long conveyor module, with a wire mesh conveyor belt.

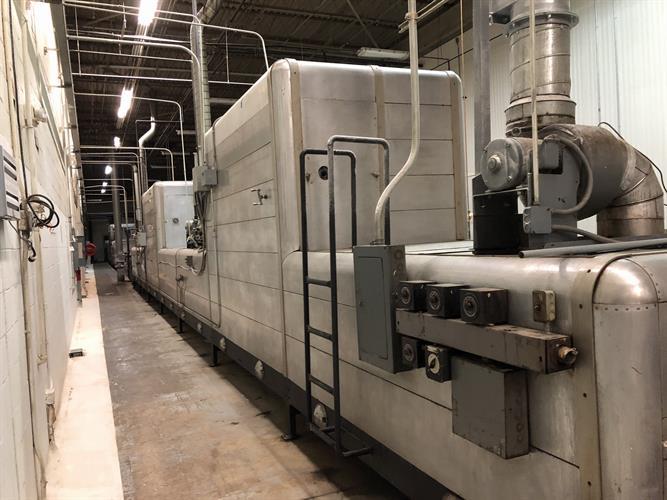

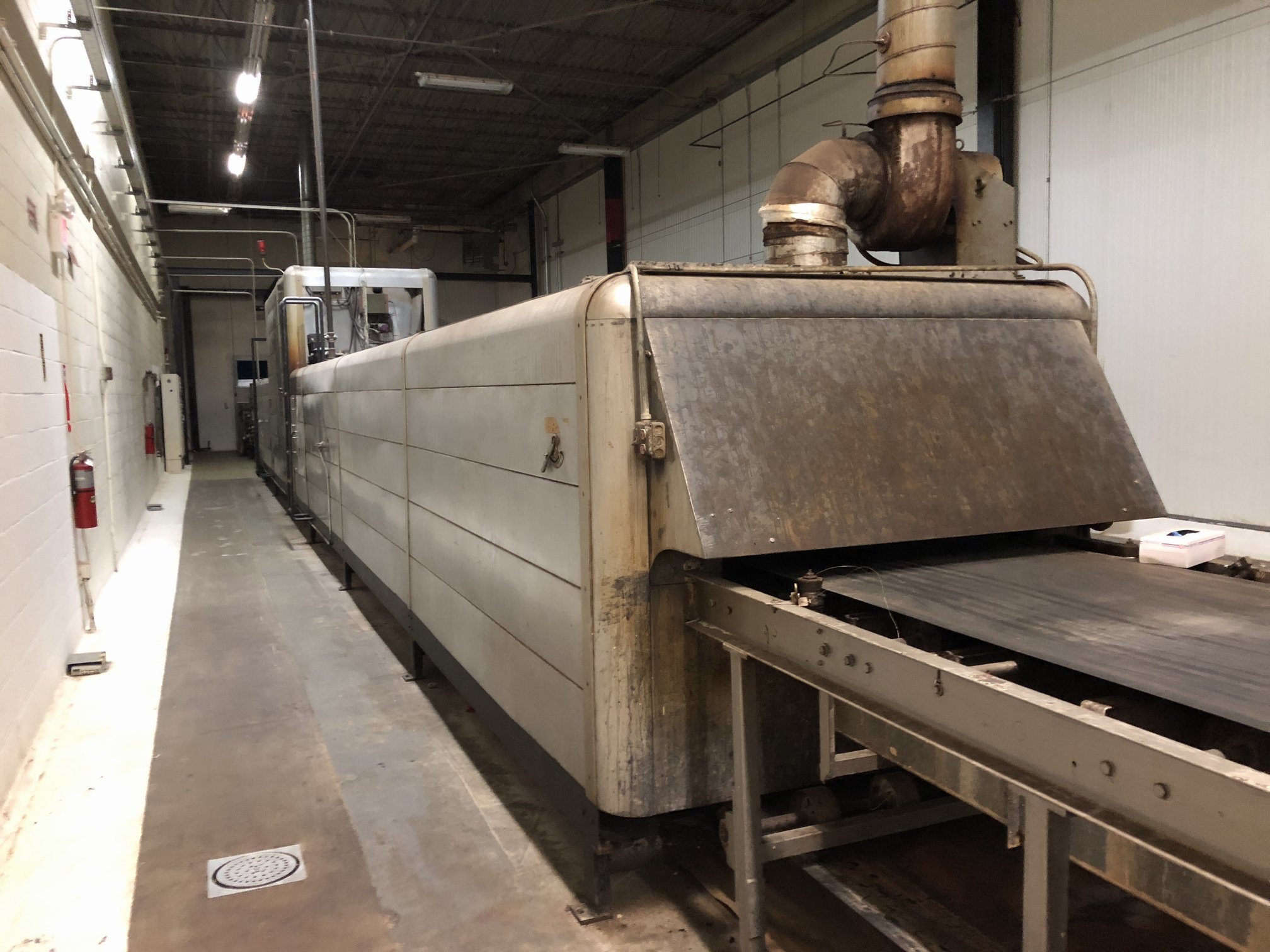

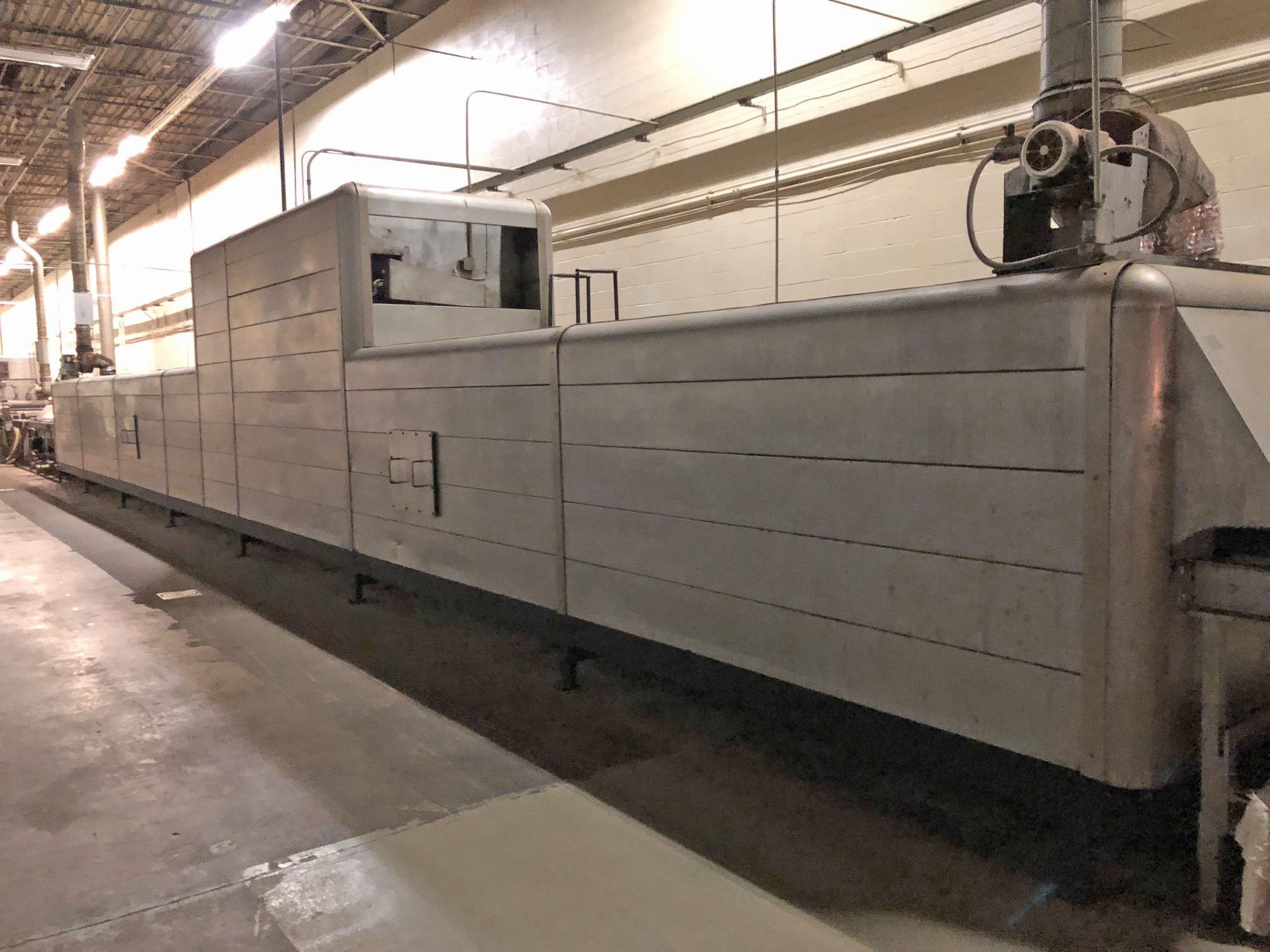

Werner Lehara, Indirect Fired, 1 meter wide tunnel oven

• Last used for final drying of the product

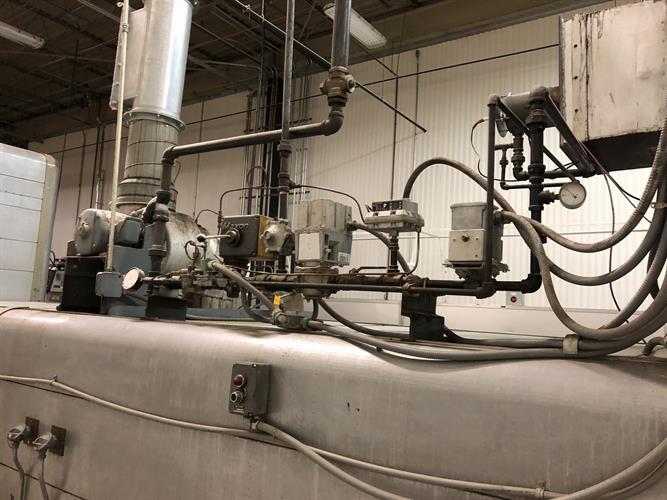

• Natural gas, Cyclothermic, indirect fired tunnel oven
• Two [2] zones, two [2] burner towers
• Open balance weave type steel mesh hearth oven belt
• 2 ft infeed length
• 70-ft long baking chamber length
• 5 foot long discharge length
• Model 1-14936, serial#1156
• Model 1-14497, serial#1153
• The master oven control panel of the first main baking oven has the controls for both ovens.

Custom Werner dry material dispenser section

• 5-ft long open wire mesh product belt
• S/S frame and separate gearmotor drive
• With a Christy CMC dry material dispenser mounted above it

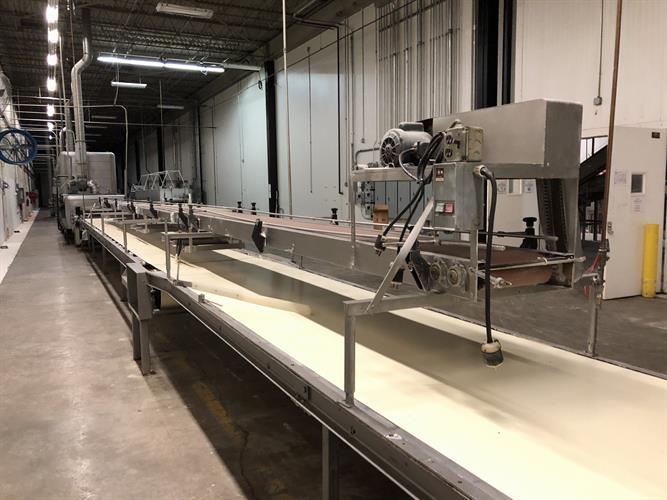

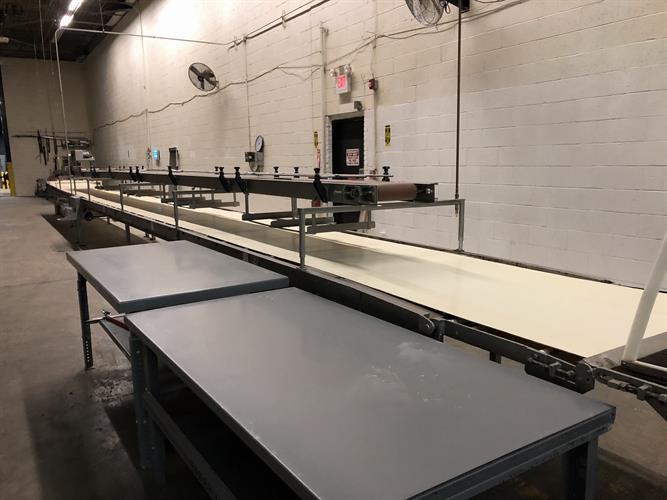

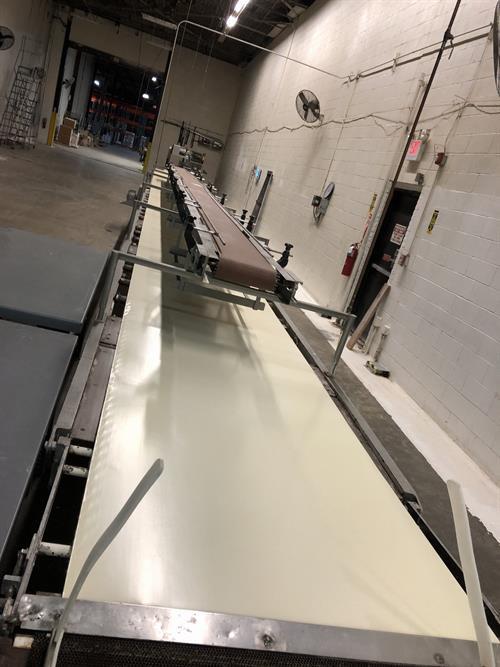

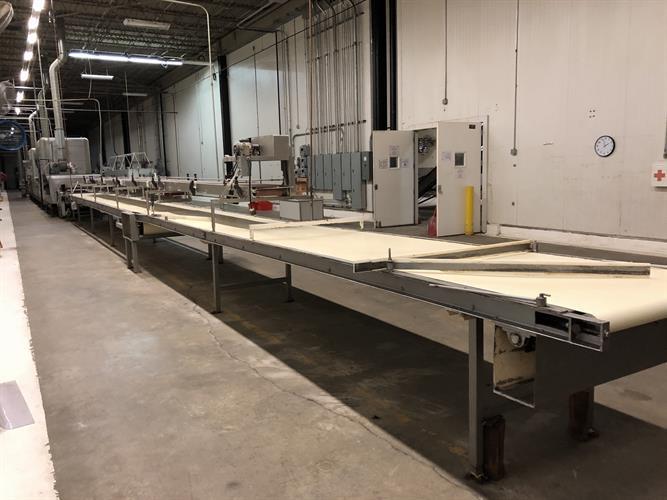

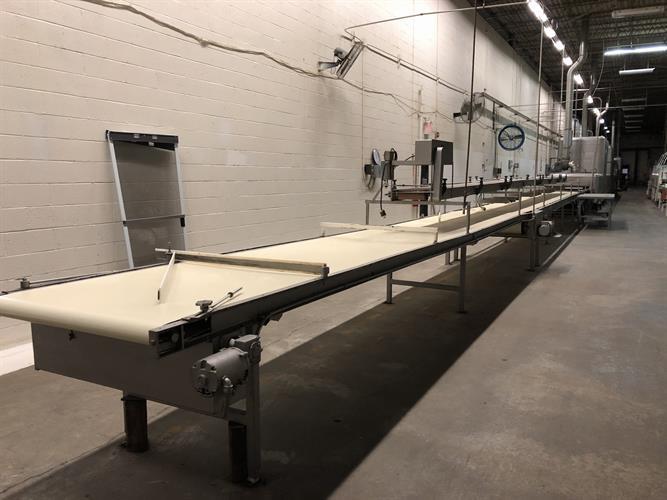

Custom cooling and manual pack off conveyor section

• 62-ft long, 1 meter wide, white belted conveyor, in two separate 31’ sections with two [2] gearmotor drives.
• With 12” wide conveyor mounted above the pack off conveyor for the packaging carton
• Both conveyors have S/S frame and are of a clean design
